Beschreibung
Highlights
Fixed pre-set torque limit
An audible and perceptible triggering signal protects against damage to materials and rework
Facilitates working in confined spaces thanks to the key handle with high-speed rotation zone
Perfect for applications in the machining industry
Well organized storage in the work bench stand
With 6 key handles and 12 interchangeable blades in a practical work bench stand
Product Description
Product description

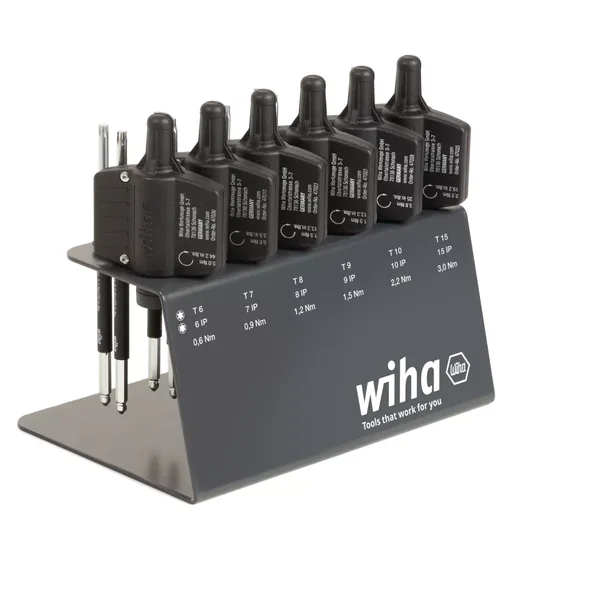

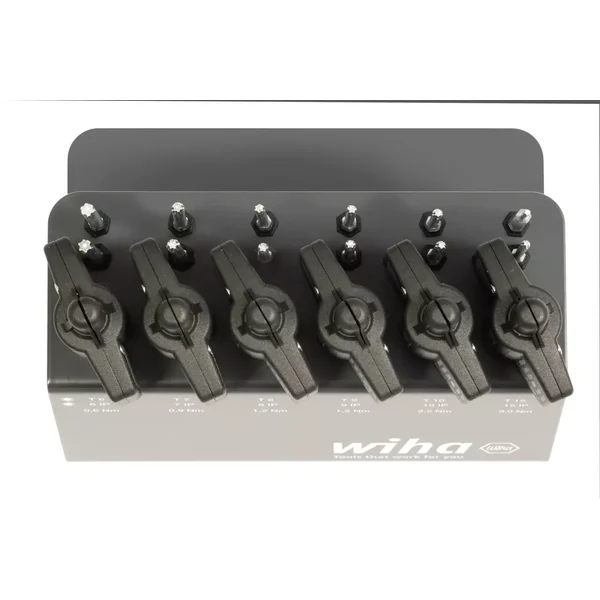

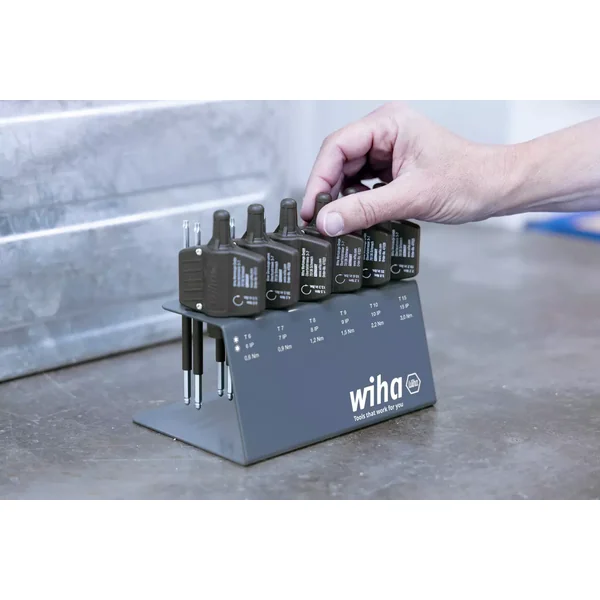

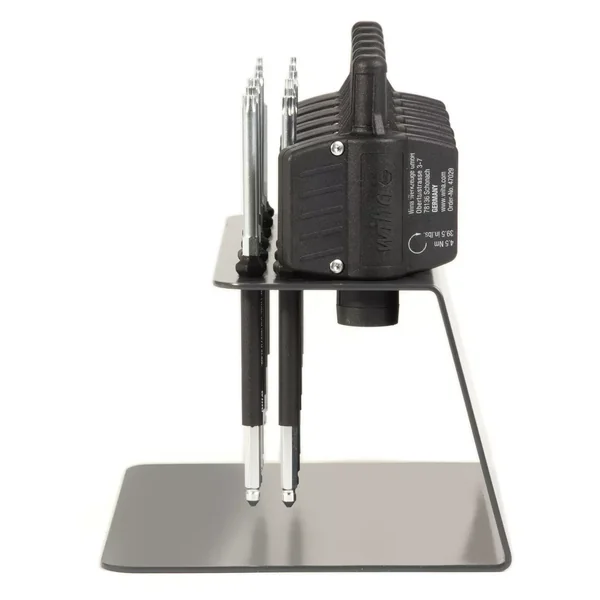

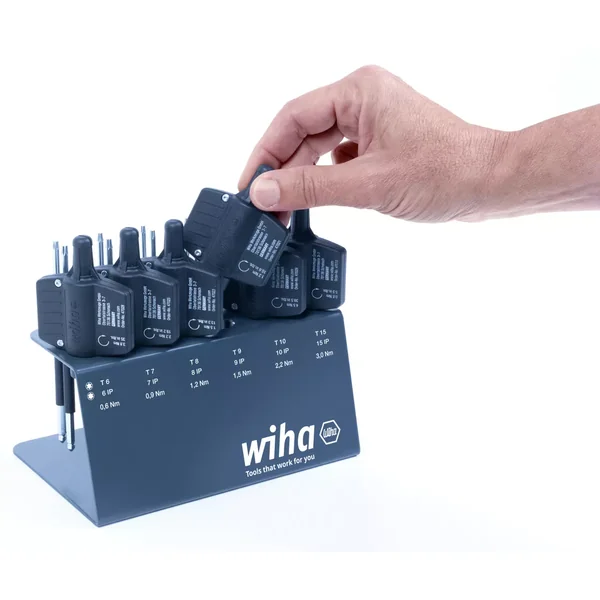

Are you looking for controlled screw tightening without damage to materials and follow-up work in hard-to-reach places? That’s no problem with the easyTorque key handle set, which ensures process-safe screw connections. Thanks to an audible and tactile click signal when reaching the set torque value, the workpiece remains undamaged and protects you from warranty claims. The compact and handy key handles provide optimum power transmission, even when tightening hard-to-reach screws in confined spaces. What’s more, the key handles enable quick twisting thanks to the high-speed rotation zone and are compatible with the Wiha interchangeable torque blades. With their mechanics that are not affected by industrial lubricants, the easyTorque key handles are the perfect companion for everyday work. Designed based on the standard EN ISO 6789, the torque tools offer a release accuracy of +/- 10%. The key handles and interchangeable blades are stored in a practical and sturdy metal work bench stand.
Product dimensions
240 x 110 x 100 mm (LxWxD)
Standards
Based on DIN EN ISO 6789.
Standard text
Wiha Werkzeuge GmbH is certified according to ISO 9001:2015, ISO 14001:2015 and ISO 50001:2018 and confirms that its products comply with internal regulations, operating instructions as well as applicable norms, standards and legal requirements and are subject to continuous process monitoring. The product complies with the requirements of Regulation (EU) 2017/821 on conflict minerals as well as the OECD Due Diligence Guidance, the General Product Safety Regulation (GPSR), Regulation (EC) No 1907/2008 (REACH), whereby the latest SVHC Candidate List is regularly reviewed and requirements are implemented, Directive 2011/65/EU (RoHS) including amendment (EU) 2015/863 as well as Regulation (EU) 2019/1021 on persistent organic pollutants (POP).
Application
For controlled fastening with a pre-set torque in confined spaces, in combination with the Wiha interchangeable torque blades.
Set constituent

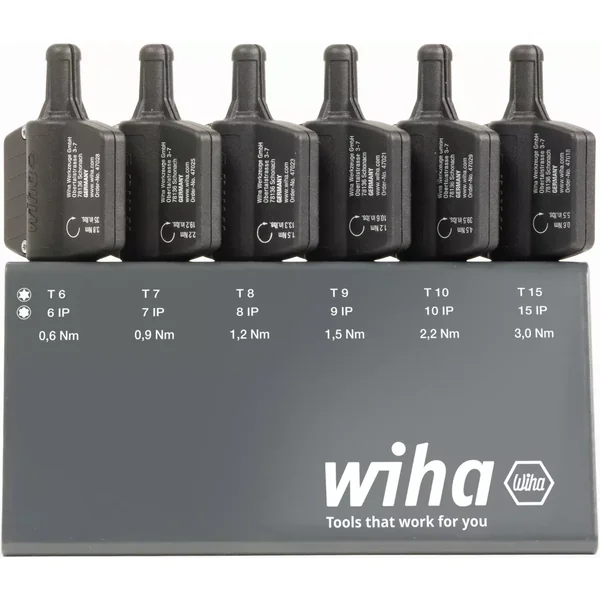

Content:1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 0.6 Nm (47018)1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 0.9 Nm (47019)1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 1.1 Nm (47020)1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 1.5 Nm (47023)1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 2.2 Nm (47025)1x Torque screwdriver with key handle easyTorque Key fixed pre-set torque limit 3.0 Nm (47026)1x Interchangeable blade TORX® for easyTorque T6 x 110 mm (46902)1x Interchangeable blade TORX® for easyTorque T7 x 110 mm (46903)1x Interchangeable blade TORX® for easyTorque T8 x 110 mm (46904)1x Interchangeable blade TORX® for easyTorque T9 x 110 mm (46905)1x Interchangeable blade TORX® for easyTorque T10 x 110 mm (46906)1x Interchangeable blade TORX® for easyTorque T15 x 110 mm (46907)1x Interchangeable blade TORX PLUS® for easyTorque 6IP x 110 mm (46919)1x Interchangeable blade TORX PLUS® for easyTorque 7IP x 110 mm (46920)1x Interchangeable blade TORX PLUS® for easyTorque 8IP x 110 mm (46922)1x Interchangeable blade TORX PLUS® for easyTorque 9IP x 110 mm (46923)1x Interchangeable blade TORX PLUS® for easyTorque 10IP x 110 mm (46924)1x Interchangeable blade TORX PLUS® for easyTorque 15IP x 110 mm (46925)1x Workbench stand
Technical Details
| Order number | EAN | 47197 | 4010995471972 | 861 |
|---|
Weight PU in grams
Series 2921
Size specifications are always given in mm
