Beschreibung
Highlights
Fixed pre-set torque limit
An audible and perceptible triggering signal protects against damage to materials and rework

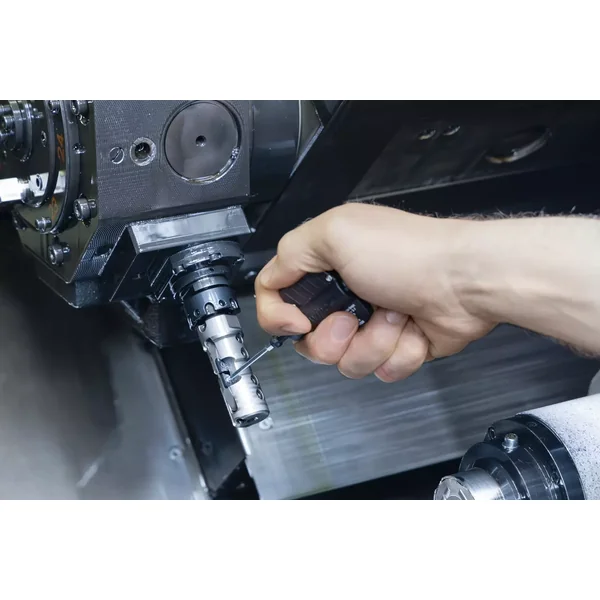

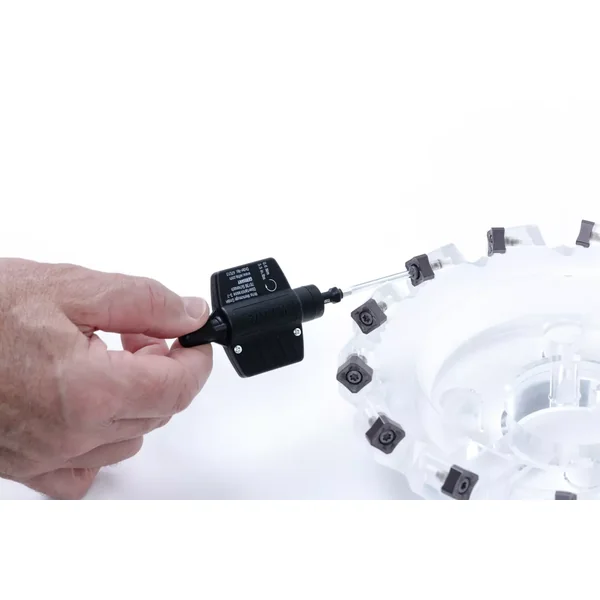

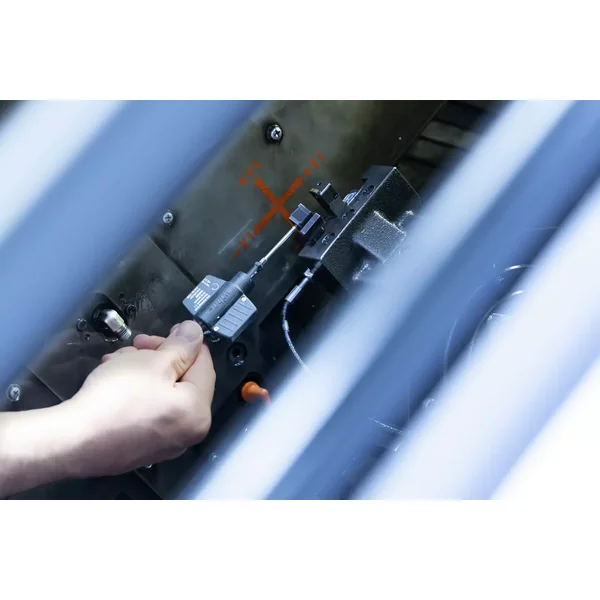

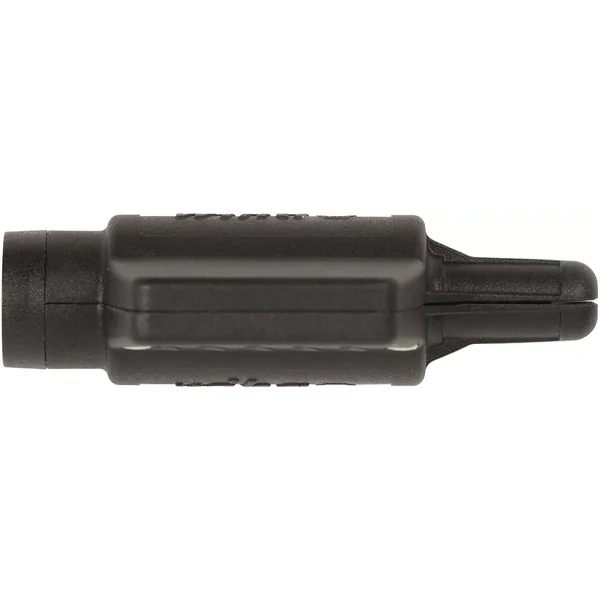

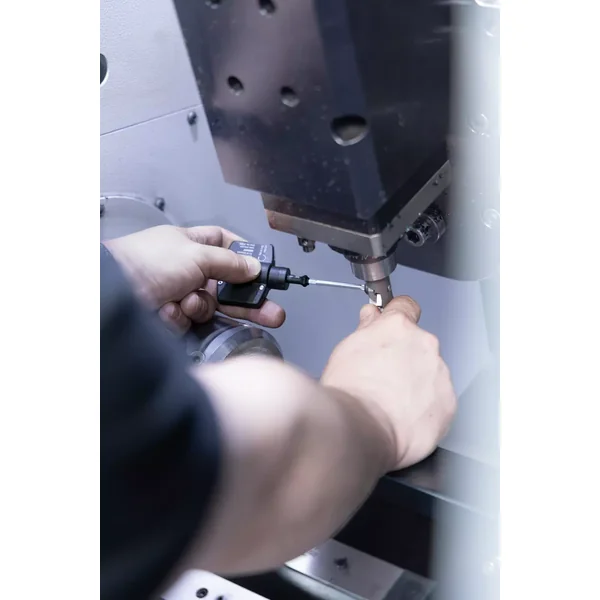

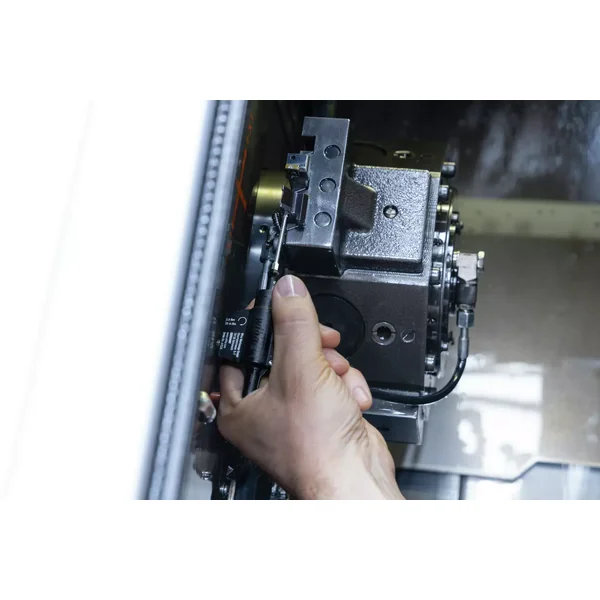

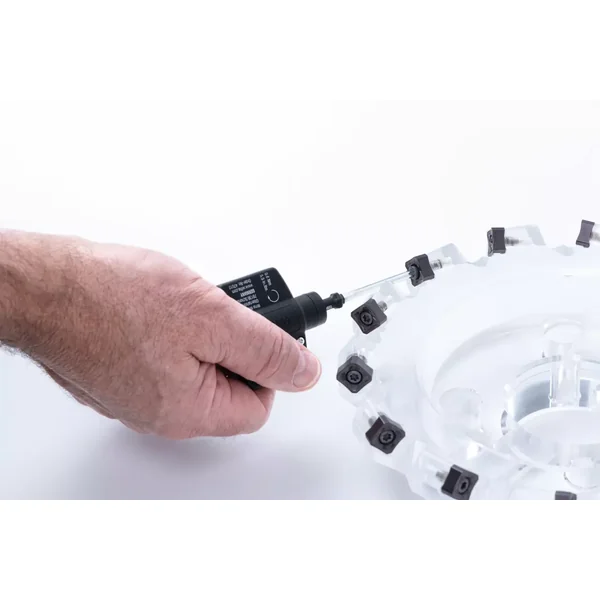

Facilitates working in confined spaces thanks to the key handle with high-speed rotation zone
Compatible with the Wiha interchangeable torque blade selection
Product Description
Product description
Are you looking for controlled screw tightening without damage to materials and follow-up work in hard-to-reach places? That’s no problem with the torque screwdriver with key handle easyTorque Key, which ensures process safety in its application. Thanks to an audible and tactile click signal when reaching the set torque value, the workpiece remains undamaged and protects you from warranty claims. The compact and handy key handle provides optimum power transmission, even when tightening hard-to-reach screws in confined spaces. What’s more, the key handle enables quick twisting thanks to the high-speed rotation zone and is compatible with the Wiha interchangeable torque blades. With its mechanics that are not affected by industrial lubricants, the easyTorque key handle is the perfect companion for everyday work. Designed based on the standard EN ISO 6789, the torque tool offers a release accuracy of +/- 10%.
Product dimensions
73 x 51 x 21 mm (LxWxD)
Standards
Based on DIN EN ISO 6789.
Note
Interchangeable torque blades are not included in the delivery contents.
Application
For controlled fastening with a pre-set torque in confined spaces, in combination with the Wiha interchangeable torque blades.
Technical Details
| Order number | EAN | 47017 | 4010995470173 | 0.5 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 |
|---|---|---|---|---|---|---|---|---|
| 47018 | 4010995470180 | 0.6 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47019 | 4010995470197 | 0.9 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47020 | 4010995470203 | 1.1 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47021 | 4010995470210 | 1.2 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47022 | 4010995470227 | 1.4 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47023 | 4010995470234 | 1.5 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47024 | 4010995470241 | 2.0 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47025 | 4010995470258 | 2.2 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47026 | 4010995470265 | 3.0 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47027 | 4010995470272 | 3.5 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47028 | 4010995470289 | 3.8 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47029 | 4010995470296 | 4.5 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 | |
| 47030 | 4010995470302 | 5.0 Nm | 10 % | 4.0 mm | 73 mm | 51 mm | 36 |
Torque value fixed (Nm)
Tolerance (%)
Hexagon head (mm)
Handle length (mm)
Handle diameter (mm)
Weight PU in grams
Series 2921
Size specifications are always given in mm
