Highlights
Torque adapter for 1,2 Nm
Acoustic and physically perceptible triggering signal protects against damage to materials and rework
Safe operation up to 1,000 V AC
Expandable and compatible with EVF products
Product Description
Product description

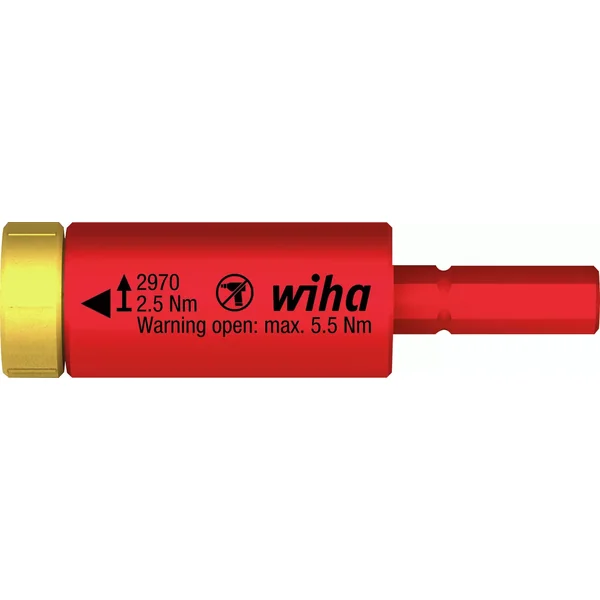

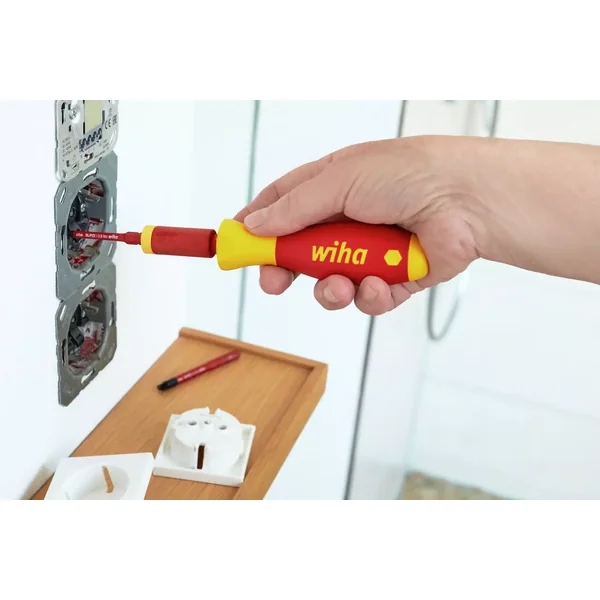

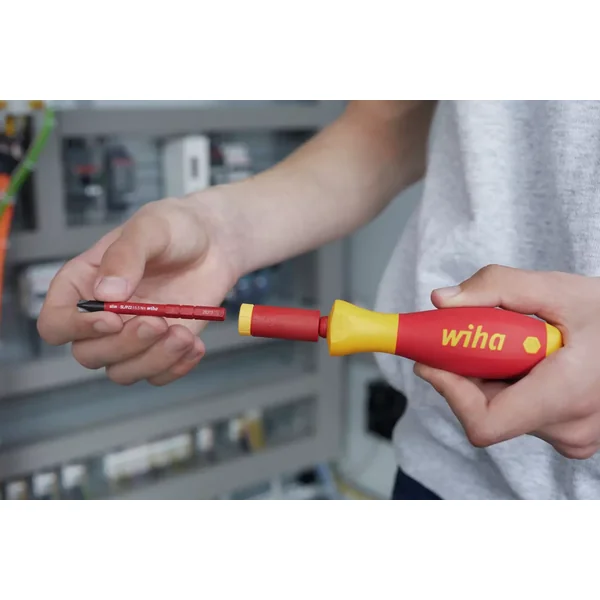

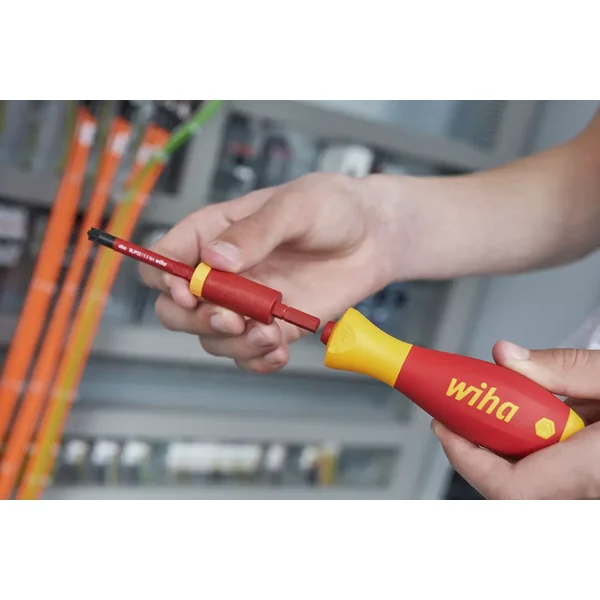

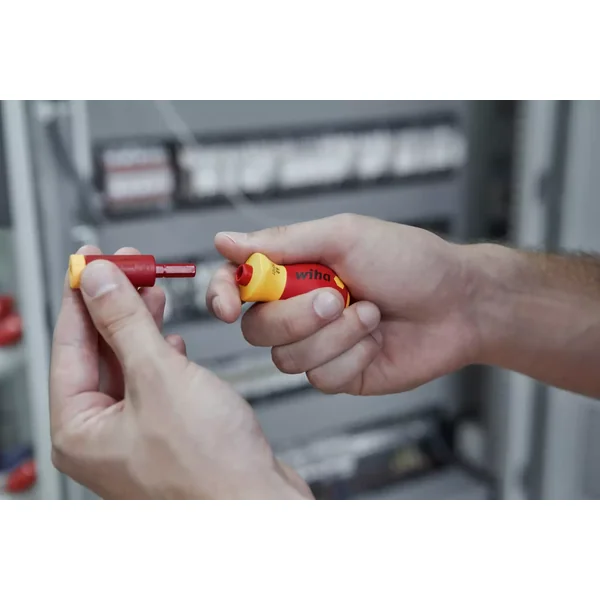

The easyTorque adapter provides controlled screw tightening combined with safe work practices for electric applications. This torque adapter with an accuracy of ±10% guarantees process-safe use, thus safeguarding against material damage and eliminating the need for refinishing. Compatible with all slimVario products, the insulated easyTorque adapter made of metal also ensures a secure hold for 75 mm slimBits. The handy adapter thus transforms the slimVario® screwdriver with bit holder, the slimVario® Stubby electric and the LiftUp electric screwdriver with bit magazine into a torque tool in next to no time (bit holder and blades are not included in the delivery contents). A click signal can be heard and the yellow ring and red adapter seen rotating in opposite directions when the torque is reached. The easyTorque torque adapter undergoes routine testing as per the international IEC 60900 standard, allowing users to work safely on live parts up to 1,000 V AC.
Product dimensions
59 x 16 x 16 mm (LxWxD)
Standards
Manufactured acc. to IEC 60900.
Application

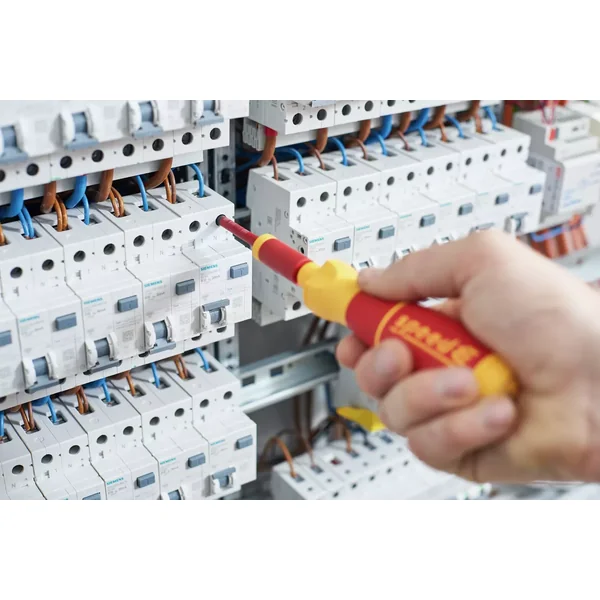

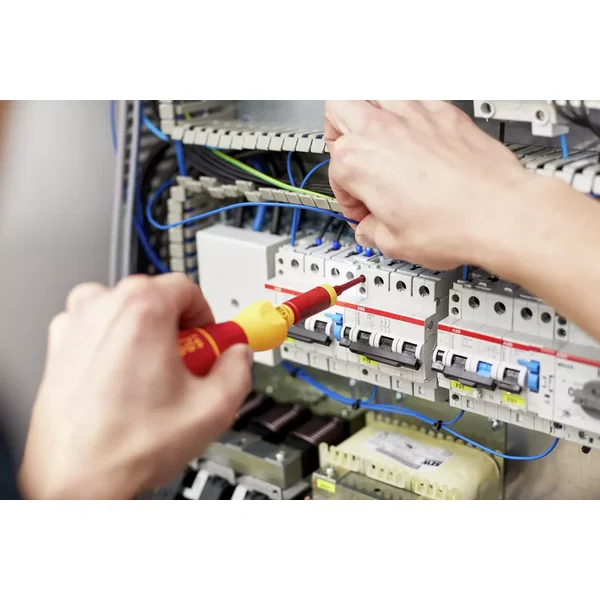

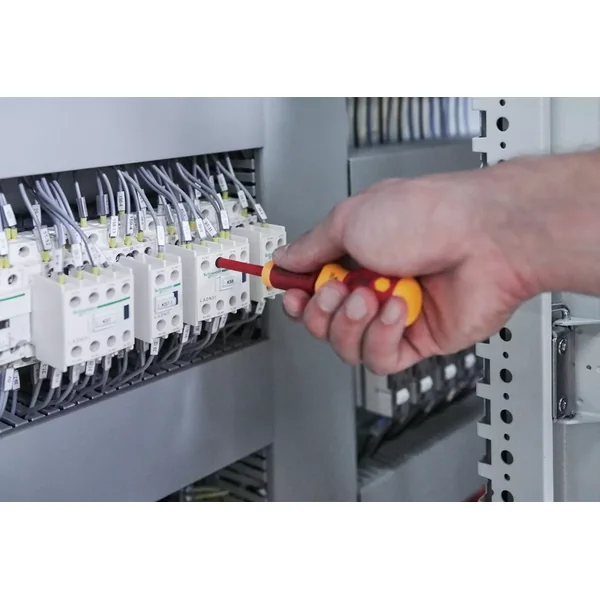

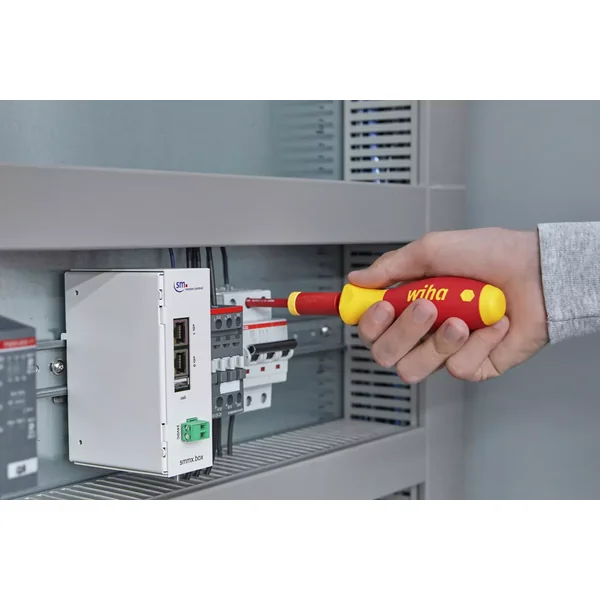

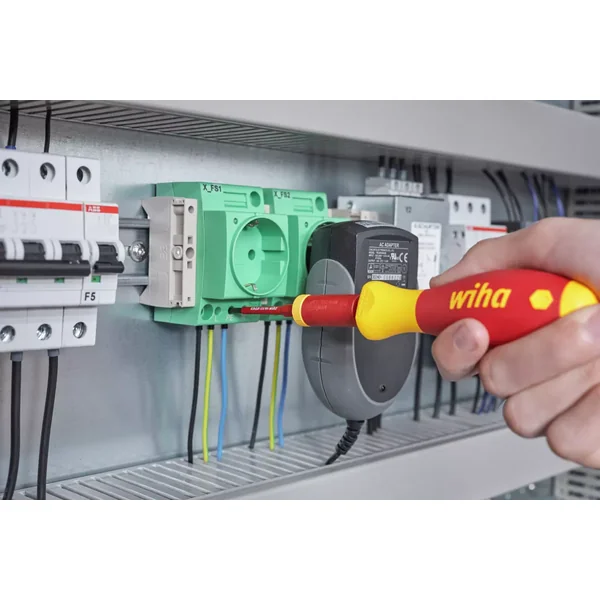

For controlled fastening for live parts up to 1,000 V AC, such as circuit breakers.
Available Downloads
- DataSheet_torque_overview_de-en.pdf
Technical Details
| Order number | EAN | 41341 | 4010995413415 | 0.8 Nm | 10 % | 59 mm | 5.5 mm | 59 |
|---|---|---|---|---|---|---|---|
| 41342 | 4010995413422 | 2.0 Nm | 10 % | 59 mm | 5.5 mm | 59 | |
| 41343 | 4010995413439 | 2.5 Nm | 10 % | 59 mm | 5.5 mm | 59 | |
| 41344 | 4010995413446 | 2.8 Nm | 10 % | 59 mm | 5.5 mm | 40 | |
| 41345 | 4010995413453 | 4.0 Nm | 10 % | 59 mm | 5.5 mm | 59 | |
| 46402 | 4010995464028 | 1.2 Nm | 10 % | 53 mm | 5.5 mm | 59 |
Torque value fixed (Nm)
Tolerance (%)
Overall length (mm)
Handle diameter (mm)
Weight PU in grams
Series 2970
Size specifications are always given in mm
Wiha ElectricVario Family
One system – unlimited combination options.
The Wiha ElectricVario family
Our Wiha ElectricVario Family, in short EVF, includes a large number of insulated fastening tools that offer unlimited combination and extension options for all types of challenges and fastening tasks. The all-round insulated system offers high compatibility and thus significantly facilitates the daily work load. The option to randomly combine the individual EVF tools allows you to put together a suitable and individual tool set within seconds.
What defines our ElectricVario family
Maximum compatibility and diverse expansion options
Flexible and variable system including around 90 tools. Ideally equipped for all challenges and fastening tasks.
Safe working
Each insulated EVF tool has been individually tested at 10,000 V AC and guarantees safe working up to 1,000 V AC.
Efficient and protected working
Wiha slimBits ensure excellent, protected access to low-lying screws.
✖
Insulated sockets
✖
slimBits
✖
Extension slimVario® electric for slimBits
✖
slimVario® electric adapter for 1/4″ nut driver
✖
Extension slimVario® electric
✖
Stubby Screwdriver with bit holder set slimVario® electric
✖
Fine screwdriver PicoFinish®
✖
Screwdriver with bit holder set SoftFinish® slimVario® electric
✖
E-screwdriver, speedE® II electric
✖
Screwdriver with bit magazine PocketMax® electric
✖
Screwdriver with bit magazine LiftUp electric
✖
Torque screwdriver TorqueVario®-S electric
✖
Torque adapter easyTorque electric
Which tools belong to the ElectricVario family?
The different handles
We offer a range of different handles, suited for your application purpose. You can opt for flexibility with the screwdrivers incl. bit magazine, maximum precision with the torque handles, 3 times faster with the speedE® electric screwdriver II, or excellent suitability for confined working environment with the Stubby short screwdriver or the PicoFinish® fine screwdriver.
Torque screwdriver TorqueVario®-S electric
variably adjustable torque limit
Pr. number: 26625
Screwdriver with bit magazine LiftUp electric
Slotted, Pozidriv, PlusMinus/Pozidriv with 6 slimBits in SB-cardboard packaging
Pr. number: 41235
Screwdriver set Stubby slimVario® electric
Slotted, Phillips, Plus Minus Pozidriv with 3 slimBits
Pr. number: 41230
Fine screwdriver set PicoFinish® slimVario® electric
Slotted, Phillips, Pozidriv with 3 slimBits
Pr. number: 43167
Screwdriver set SoftFinish® slimVario® electric
Slotted, Plus Minus Pozidriv with 3 slimBits
Pr. number: 43449
The adapters
The ElectricVario family includes a number of different adapters.
- the easyTorque adapters for the expansion into a torque tool
- the slimBit extension and adapter for 1/4″ nut drivers
- slimBit and 1/4“ adapter blade for TorqueVario®-S electric
Torque adapter easyTorque electric
for slimBits and slimVario® holder
Pr. number: 41344
Torque set easyTorque adapter electric
2,0 Nm with slimVario® holder and SL/PZ slimBits, 4-pcs.
Pr. number: 41477
slimVario® electric adapter
for 1/4″ nut driver
Pr. number: 43139
Extension slimVario® electric
for slimBits
Pr. number: 43292
The slimBits
In conventional VDE screwdrivers the blade diameter is often too large to reach low-lying screws. However, removing the insulation is not permitted and also compromises the user’s safety. With our slimTECHNOLOGY specially developed for electric applications, the protective insulation has been integrated into the blade, thus allowing blades which are up to 33% slimmer. This means low-lying screws and spring elements can also be easily reached with the slimBits.
slimBit electric bit set
TORX®, 6-pcs.
Pr. number: 43154
slimBit electric bit set
Slotted, hex, 6-pcs.
Pr. number: 45803
slimBit electric bit set
assorted with slimBit holder, 7-pcs.
Pr. number: 36079
slimBit electric bit set
Slotted, PlusMinus/Pozidriv 6-pcs.
Pr. number: 43158
slimBit electric bit set
TORX®, 6-pcs.
Pr. number: 43153
slimBit electric bit set
TORX®, TORX PLUS®, 12-pcs. with belt clip
Pr. number: 43161
slimBit electric bit set
Slotted, Pozidriv 6-pcs.
Pr. number: 43157
slimBit electric bit set
Mixed 6-pcs.
Pr. number: 44366
slimBit electric bit set
Mixed 6-pcs.
Pr. number: 45804
slimBit electric bit set
Slotted, 6-pcs.
Pr. number: 43152
slimBit electric bit set
Hex, 6-pcs.
Pr. number: 43156
slimBit electric bit set
TORX PLUS®, 6-pcs.
Pr. number: 43155
slimBit electric bit set
Slotted, Phillips, Pozidriv 6-pcs.
Pr. number: 43160
slimBit electric bit set
Slotted, Phillips, Pozidriv, PlusMinus/Pozidriv, TORX® 12-pcs. with belt clip
Pr. number: 43162
slimBit electric bit set
Slotted, Phillips 6-pcs.
Pr. number: 43159
Insulated sockets
Many different screw profiles are required when working in different locations, e.g. on switch cabinets and electrical systems. Our selection of different socket spanner inserts covers the most common screw connections.
TorqueVario®-S electric nut driver insert 1/4″ set
Mixed, 11-pcs., incl. adapters and folding bag
Pr. number: 43466
Insulated nut driver
3/8″ hexagon head
Pr. number: 43065
Insulated nut driver
1/4″ hexagon head
Pr. number: 43088
Insulated nut driver
1/4″ internal hexagon
Pr. number: 43109
