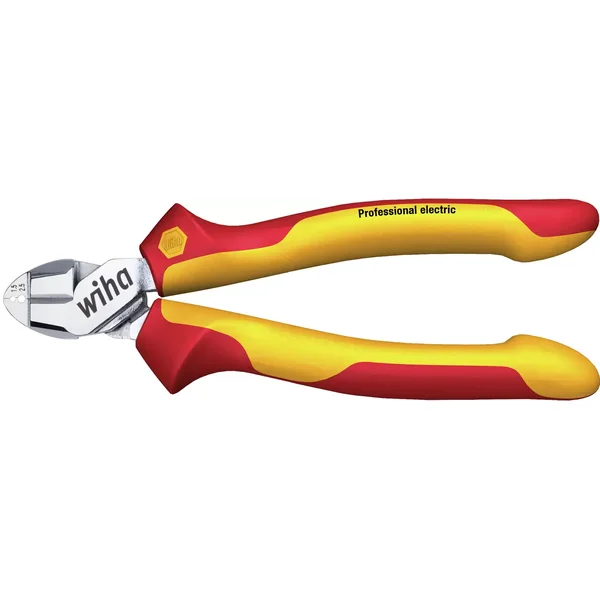

Stripping diagonal cutters Professional electric with DynamicJoint®

Product description

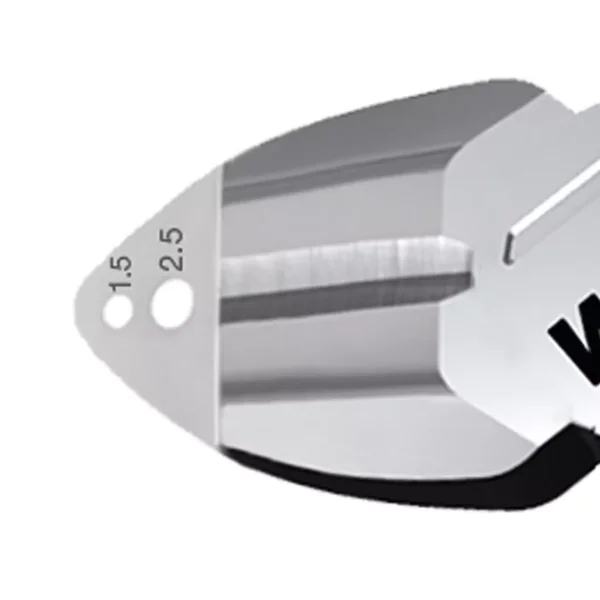

A variety of pliers are essential for working on electrical installations. The skinning diagonal cutters from Wiha combine two pliers in one, saving space and weight. The pliers are ideally suited for cutting of hard and soft wires. The pliers joint with DynamicJoint® ensures that the hand force is optimally transferred to the cutting edges, providing up to 20% greater cutting force. With their semi-circular head, these precision pliers also provide a clean cut edge. In addition, two skinning stations in sizes 1.5 mm² and 2.5 mm² allow precise skinning. The ergonomically shaped plier handle ensures comfortable, fatigue-proof work. The high-quality chrome-plated plier surface also provides protection against rust, ensuring the pliers have a long service life. The cutting edges that are inductively hardened to approx. 64 HRC and the high-quality C 70 tool steel contribute to a long tool life. The insulated diagonal cutters are subject to routine testing as per the international IEC 60900 standard, thus ensuring safe work on live parts up to 1,000 V AC.

Product dimensions

230 x 100 x 32 mm (LxWxD)

Standards

Manufactured acc. to IEC 60900.

Application

For cutting and skinning in electrical installations. For working on live parts up to 1,000 V AC.

Overall length (mm)

Overall length (Inch)

Soft wire (mm)

Medium-hard wire (mm)

Hard wire (mm)

Cutting force

Diameter max (mm)

Blister packed

Area stripped, cross section min – max (mm²)

Weight PU in grams

Series Z 14 0 06

Size specifications are always given in mm
