Product Description
Product description

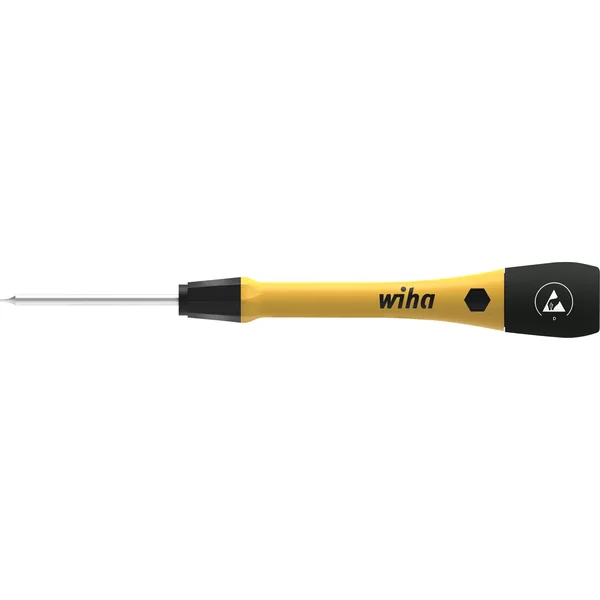

The challenge when working on electronic components is that they can become damaged even at the lowest voltages. The electrostatically conductive fine screwdriver PicoFinish® ESD masters such tasks effortlessly. Thanks to their long, slim handles and quick-turning zone, these fine screwdrivers are ideal for careful, precise work practices on delicate workpieces. Their ergonomic handle design with soft zone makes them comfortable to use. The smooth-running rotating cap allows users to turn the screwdriver quickly and sensitively. The printed screwdriver symbols on the rotating cap make it easier to select the right screwdriver profile. The dissipative tool safely channels electrostatic energy away in a controlled fashion. The ESD fine screwdrivers are manufactured in compliance with international IEC standard 61340-5-1, thus guaranteeing maximum protection for electronic components. These screwdrivers have a surface resistance between 10⁶ – 10⁹ ohm.
Product dimensions
142 x 17 x 17 mm (LxWxD)
Application
Ideal for fine and delicate fastening tasks on components at risk of electrostatic discharge.
Technical Details
| Order number | EAN | 43698 | 4010995436988 | T5 | 40 mm | 2.5 mm | 134 mm | 9 mm | 12 |
|---|---|---|---|---|---|---|---|---|
| 43699 | 4010995436995 | T6 | 40 mm | 2.5 mm | 140 mm | 18 mm | 16 | |
| 43700 | 4010995437008 | T7 | 40 mm | 2.5 mm | 140 mm | 18 mm | 15 | |
| 43701 | 4010995437015 | T8 | 40 mm | 2.5 mm | 140 mm | 18 mm | 15 | |
| 43703 | 4010995437039 | T10 | 50 mm | 3 mm | 150 mm | 18 mm | 18 | |
| 43704 | 4010995437046 | T15 | 60 mm | 3.5 mm | 150 mm | 18 mm | 21 |
TORX® 1
Visible blade length (mm)
Round blade diameter (mm)
Overall length (mm)
Handle diameter (mm)
Weight PU in grams
Series 277P
Size specifications are always given in mm
