Product Description
Product description

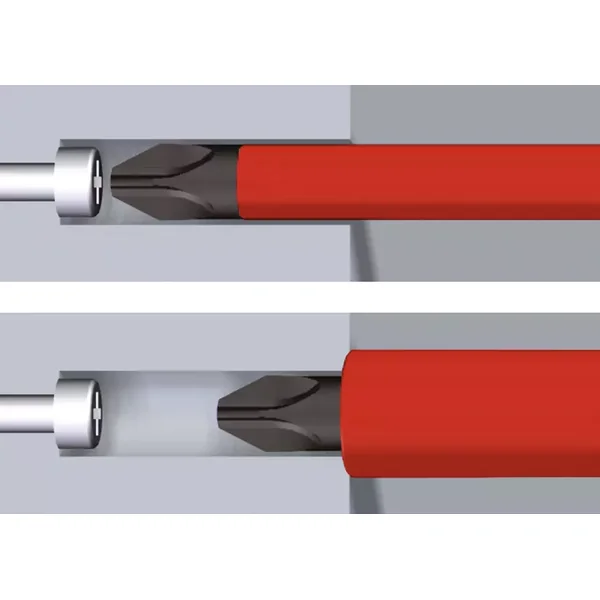

To reach low-lying screws, the blade diameter is often too large in conventional electric screwdrivers. Because removing insulation is not permitted and also compromises the user’s safety, protective insulation has been integrated into the blade with the Wiha slimTECHNOLOGY. This has been specially developed for electrical applications, thereby ensuring blades up to 33% slimmer. This means low-lying screw and spring elements can also be easily reached with the slimBits. The insulated slimBits undergo individual piece testing as per the international IEC 60900 standard, *providing users with a tool to work safely on live parts up to 1,000 V AC. 6 mm slimBits only to be used in the slimVario® bit holder and slimTorque VDE bit holder (VDE torque system).
Product dimensions
75 x 7 x 6 mm (LxWxD)
Standards
Manufactured acc. to IEC 60900.
Application
For work in the area of live parts up to 1,000 V AC.
Technical Details
| Order number | EAN | 34585 | 4010995345853 | PZ1 | 75 mm | 3.8 Nm | 8 |
|---|---|---|---|---|---|---|---|
| 34586 | 4010995345860 | PZ2 | 75 mm | 5.5 Nm | 11 | ||
| 43117 *1 | 4010995431174 | PZ0 | 75 mm | 0.9 Nm | 8 |
Pozidriv 1
Overall length (mm)
Internal hexagon, diameter (mm)
Torque value max (Nm)
Weight PU in grams
Series 283112
Size specifications are always given in mm
*1 no slim version
Wiha ElectricVario Family
One system – unlimited combination options.
The Wiha ElectricVario family
Our Wiha ElectricVario Family, in short EVF, includes a large number of insulated fastening tools that offer unlimited combination and extension options for all types of challenges and fastening tasks. The all-round insulated system offers high compatibility and thus significantly facilitates the daily work load. The option to randomly combine the individual EVF tools allows you to put together a suitable and individual tool set within seconds.
What defines our ElectricVario family
Maximum compatibility and diverse expansion options
Flexible and variable system including around 90 tools. Ideally equipped for all challenges and fastening tasks.
Safe working
Each insulated EVF tool has been individually tested at 10,000 V AC and guarantees safe working up to 1,000 V AC.
Efficient and protected working
Wiha slimBits ensure excellent, protected access to low-lying screws.
✖
Insulated sockets
✖
slimBits
✖
Extension slimVario® electric for slimBits
✖
slimVario® electric adapter for 1/4″ nut driver
✖
Extension slimVario® electric
✖
Stubby Screwdriver with bit holder set slimVario® electric
✖
Fine screwdriver PicoFinish®
✖
Screwdriver with bit holder set SoftFinish® slimVario® electric
✖
E-screwdriver, speedE® II electric
✖
Screwdriver with bit magazine PocketMax® electric
✖
Screwdriver with bit magazine LiftUp electric
✖
Torque screwdriver TorqueVario®-S electric
✖
Torque adapter easyTorque electric
Which tools belong to the ElectricVario family?
The different handles
We offer a range of different handles, suited for your application purpose. You can opt for flexibility with the screwdrivers incl. bit magazine, maximum precision with the torque handles, 3 times faster with the speedE® electric screwdriver II, or excellent suitability for confined working environment with the Stubby short screwdriver or the PicoFinish® fine screwdriver.
Torque screwdriver TorqueVario®-S electric
variably adjustable torque limit
Pr. number: 26625
Screwdriver with bit magazine LiftUp electric
Slotted, Pozidriv, PlusMinus/Pozidriv with 6 slimBits in SB-cardboard packaging
Pr. number: 41235
Screwdriver set Stubby slimVario® electric
Slotted, Phillips, Plus Minus Pozidriv with 3 slimBits
Pr. number: 41230
Fine screwdriver set PicoFinish® slimVario® electric
Slotted, Phillips, Pozidriv with 3 slimBits
Pr. number: 43167
Screwdriver set SoftFinish® slimVario® electric
Slotted, Plus Minus Pozidriv with 3 slimBits
Pr. number: 43449
The adapters
The ElectricVario family includes a number of different adapters.
- the easyTorque adapters for the expansion into a torque tool
- the slimBit extension and adapter for 1/4″ nut drivers
- slimBit and 1/4“ adapter blade for TorqueVario®-S electric
Torque adapter easyTorque electric
for slimBits and slimVario® holder
Pr. number: 41344
Torque set easyTorque adapter electric
2,0 Nm with slimVario® holder and SL/PZ slimBits, 4-pcs.
Pr. number: 41477
slimVario® electric adapter
for 1/4″ nut driver
Pr. number: 43139
Extension slimVario® electric
for slimBits
Pr. number: 43292
The slimBits
In conventional VDE screwdrivers the blade diameter is often too large to reach low-lying screws. However, removing the insulation is not permitted and also compromises the user’s safety. With our slimTECHNOLOGY specially developed for electric applications, the protective insulation has been integrated into the blade, thus allowing blades which are up to 33% slimmer. This means low-lying screws and spring elements can also be easily reached with the slimBits.
slimBit electric bit set
TORX®, 6-pcs.
Pr. number: 43154
slimBit electric bit set
Slotted, hex, 6-pcs.
Pr. number: 45803
slimBit electric bit set
assorted with slimBit holder, 7-pcs.
Pr. number: 36079
slimBit electric bit set
Slotted, PlusMinus/Pozidriv 6-pcs.
Pr. number: 43158
slimBit electric bit set
TORX®, 6-pcs.
Pr. number: 43153
slimBit electric bit set
TORX®, TORX PLUS®, 12-pcs. with belt clip
Pr. number: 43161
slimBit electric bit set
Slotted, Pozidriv 6-pcs.
Pr. number: 43157
slimBit electric bit set
Mixed 6-pcs.
Pr. number: 44366
slimBit electric bit set
Mixed 6-pcs.
Pr. number: 45804
slimBit electric bit set
Slotted, 6-pcs.
Pr. number: 43152
slimBit electric bit set
Hex, 6-pcs.
Pr. number: 43156
slimBit electric bit set
TORX PLUS®, 6-pcs.
Pr. number: 43155
slimBit electric bit set
Slotted, Phillips, Pozidriv 6-pcs.
Pr. number: 43160
slimBit electric bit set
Slotted, Phillips, Pozidriv, PlusMinus/Pozidriv, TORX® 12-pcs. with belt clip
Pr. number: 43162
slimBit electric bit set
Slotted, Phillips 6-pcs.
Pr. number: 43159
Insulated sockets
Many different screw profiles are required when working in different locations, e.g. on switch cabinets and electrical systems. Our selection of different socket spanner inserts covers the most common screw connections.
TorqueVario®-S electric nut driver insert 1/4″ set
Mixed, 11-pcs., incl. adapters and folding bag
Pr. number: 43466
Insulated nut driver
3/8″ hexagon head
Pr. number: 43065
Insulated nut driver
1/4″ hexagon head
Pr. number: 43088
Insulated nut driver
1/4″ internal hexagon
Pr. number: 43109
