sauter radius template CJ-PRO set

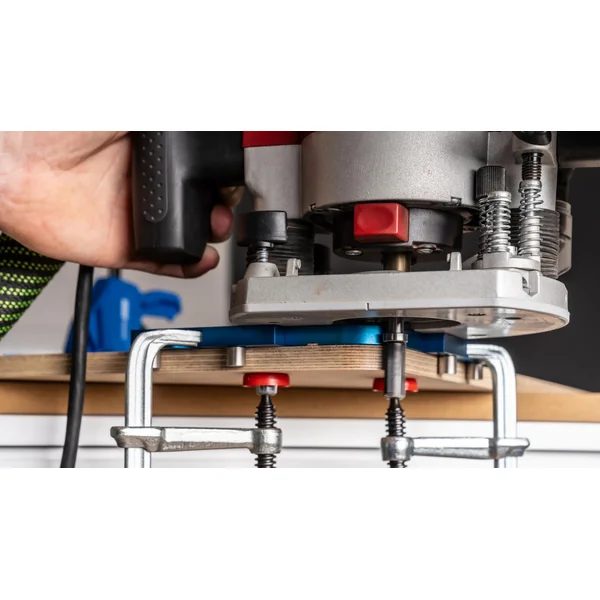

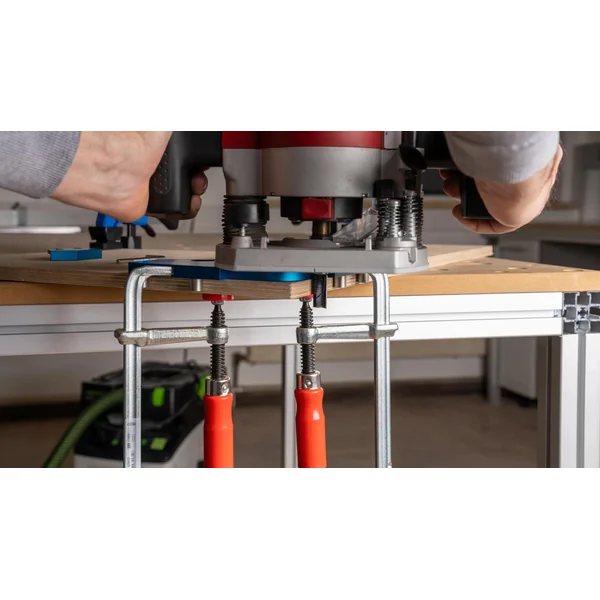

Use with a hand-held router for large panels or on the router table for small parts.

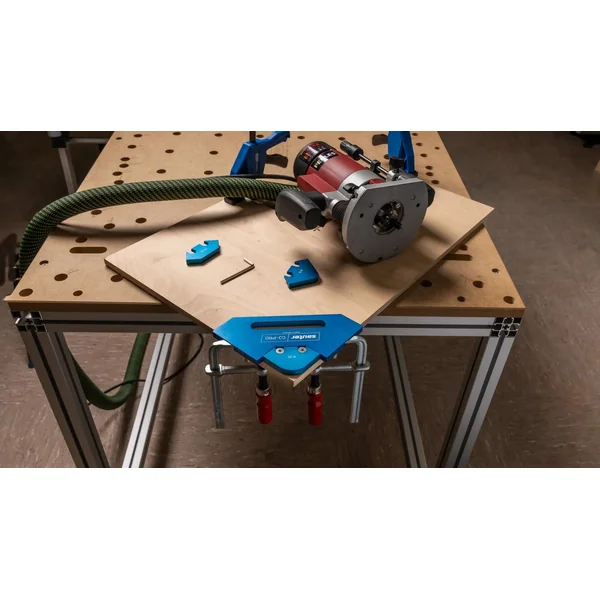

When developing the corner routing template, we focussed on versatility. This routing template shows its strengths both in manual operation and on the routing table. You get perfect results in both cases. Larger formats, such as table tops, are easier to clamp on a workbench and mill with a manual router. Smaller formats can be processed more quickly on the router table. In both cases, you simply guide the corner template along the bearing of a flush router to obtain a smooth, even radius or bevelled edge (chamfer). You mill a perfect corner every time.
Technical data

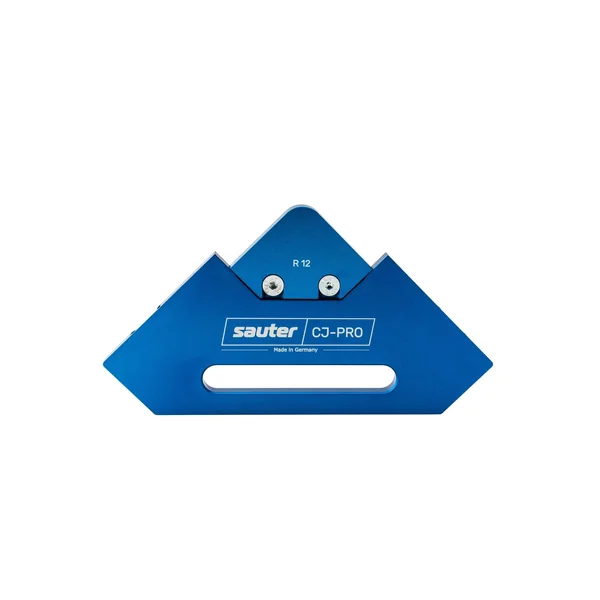

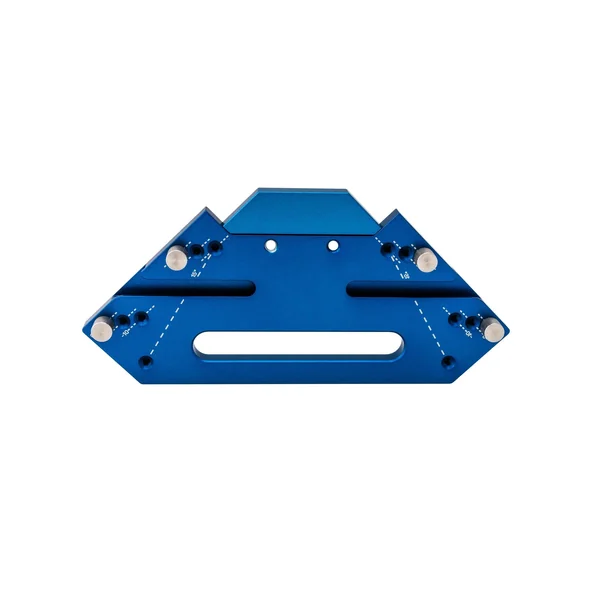

sauter corner template CJ-PRO
- Radius size
12 mm – interchangeable
- Dimensions (LxWxH)
210x102x19mm
- Material
Anodised aluminium (blue)

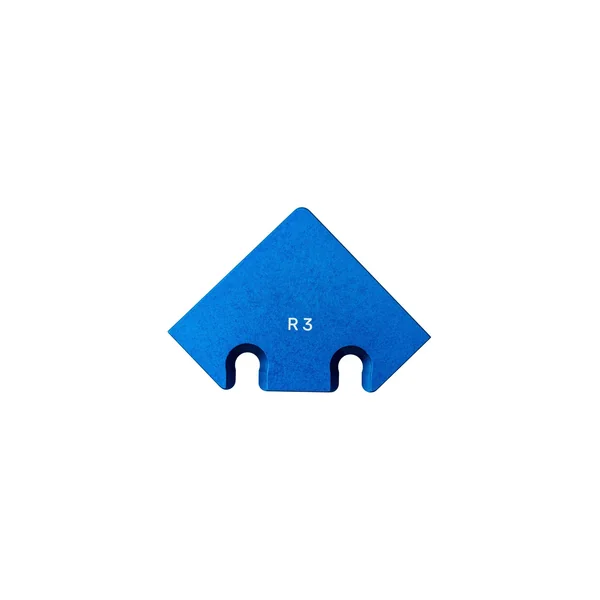

sauter interchangeable template CJ-PRO radius 3 mm
- Radius size
3mm
- Dimensions (LxWxH)
75x40x10mm
- Material
Anodised aluminium (blue)

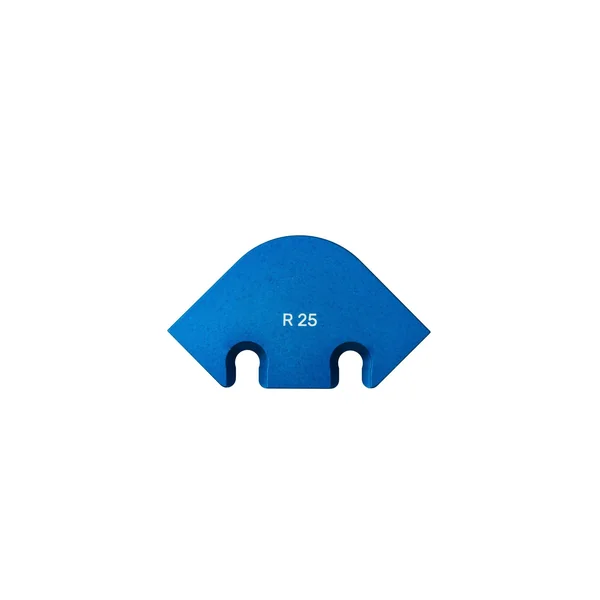

sauter interchangeable template CJ-PRO radius 25 mm
- Radius size
25mm
- Dimensions (LxWxH)
75x40x10mm
- Material
Anodised aluminium (blue)

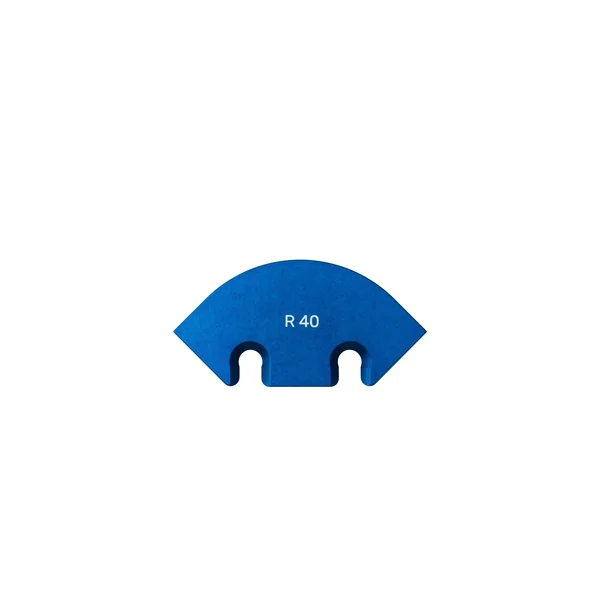

sauter interchangeable template CJ-PRO radius 40 mm
- Radius size
40mm
- Dimensions (LxWxH)
75x40x10mm
- Material
Anodised aluminium (blue)

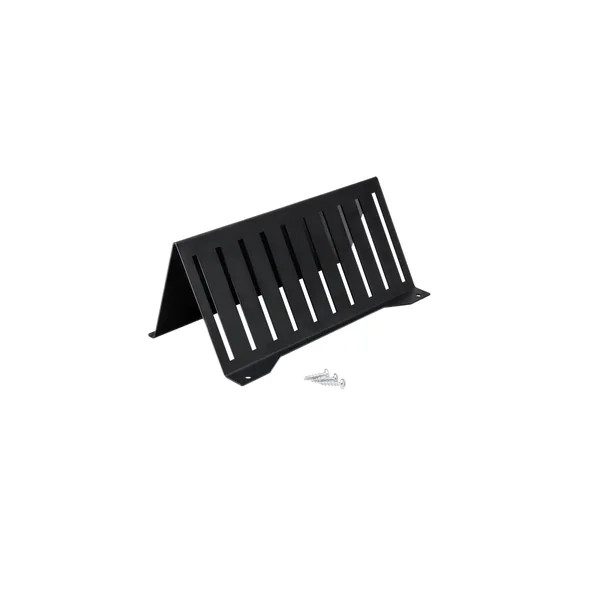

Wall bracket for CJ-PRO interchangeable templates
- Material
Steel, powder-coated (black)
Features & benefits
- The 13 different and optionally available radius templates start at R3 and go up to R40. The 7 optional chamfer templates range from F6 to F40.
- The templates areeasy to change using 2 hexagon socket screws.

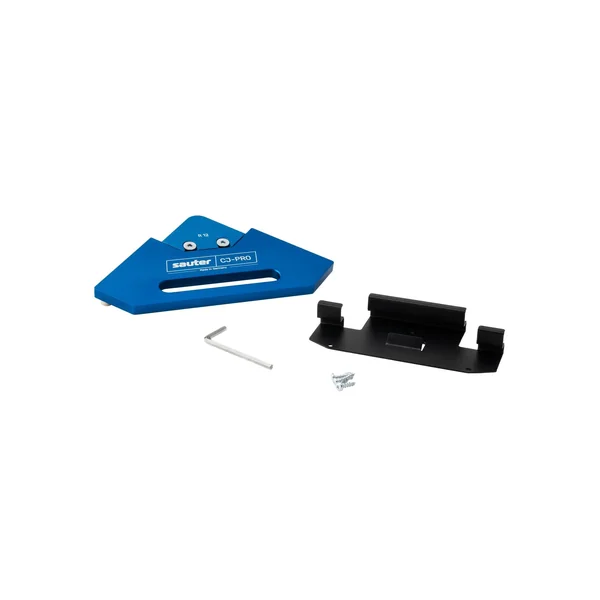

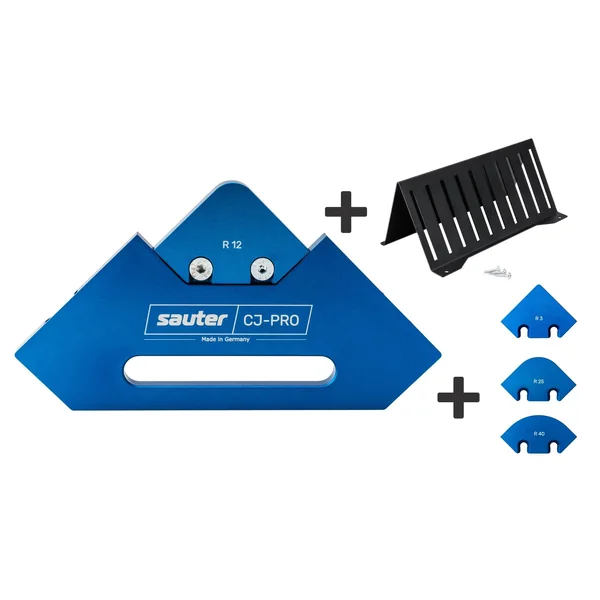

- This SET already includes 4 radii sizes (R3; R12; R25; R40) + the matching wall bracket for interchangeable templates.
- Variable stops adjustable in 5 mm steps to vary the bevel size.

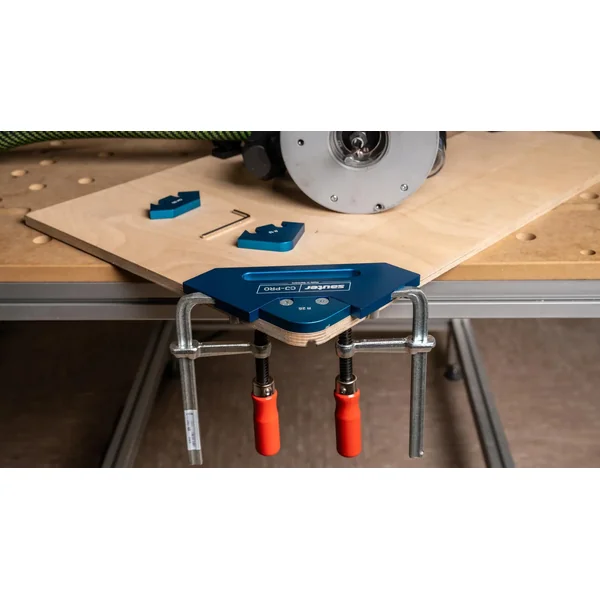

- Integrated and very practical grooves for a secure hold with guide rails Clamps for clamping the template on the workpiece.
- All aluminium components are anodised to protect against corrosion and give them our unmistakable „sauter blue“ design.
- Safely stowed away – the wall bracket is already included.
- Made in Germany.
