Beschreibung

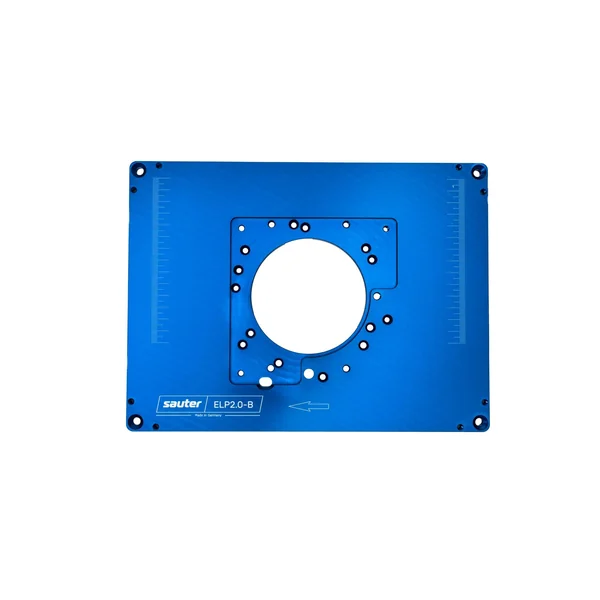

Premium insert plate with magnetic reduction plates from sauter
Absolutely high-quality and made of robust aluminium. Already pre-drilled for many Bosch routers
Technical data

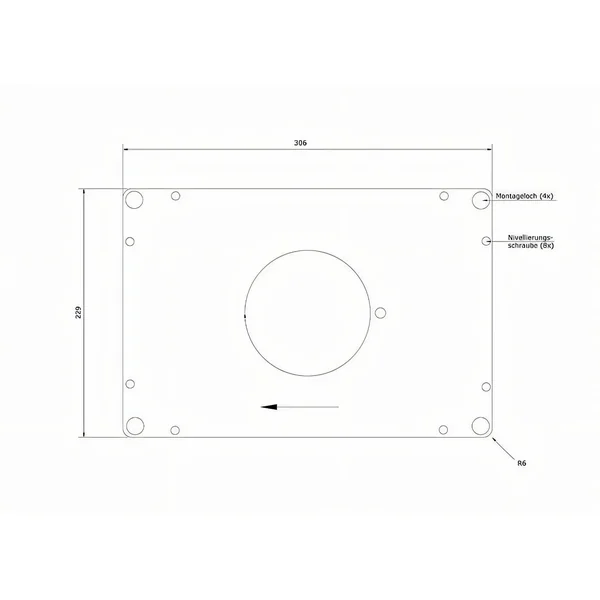

- Dimensions
306 x 229 x 9 mm.
- Corner radius
6 mm
- Ø cutter openings
32 and 68 mm (further diameters up to 98 mm separately extendable).
Features & benefits
- Quality Made in Germany!
- Full aluminium with 9 mm thickness for ultimate stability, robustness and flatness

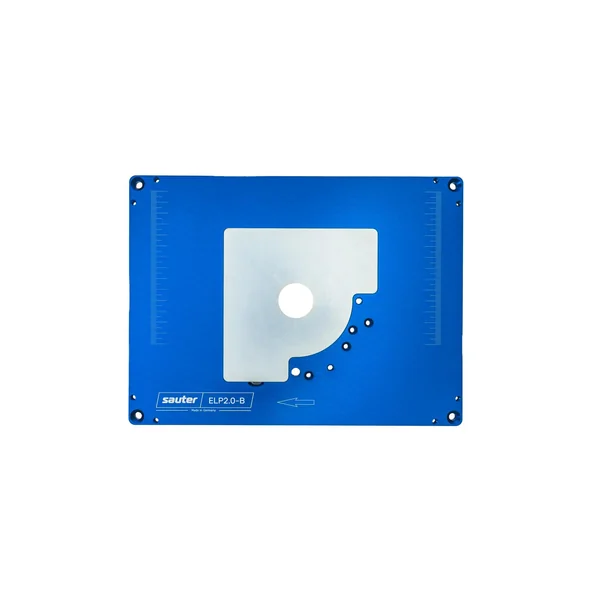

- The perfect insert plate with magnetic reduction plates.

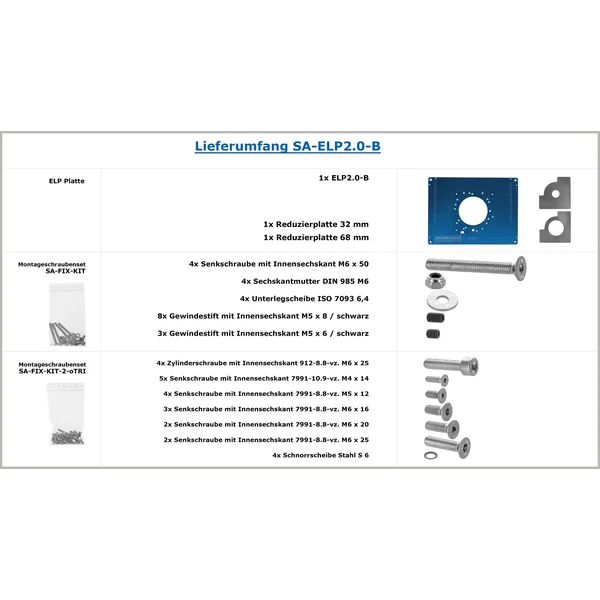

- Including 2 high-quality reduction plates made of galvanized, 2 mm thick steel with Ø cutter opening 32 and 68 mm.
- Includes hole for free-routing pin (to be purchased separately) for working with curved workpieces.
- Maximum Ø cutter opening: 98 mm (Reduction plate art. no. SA-ELP2.0-98).

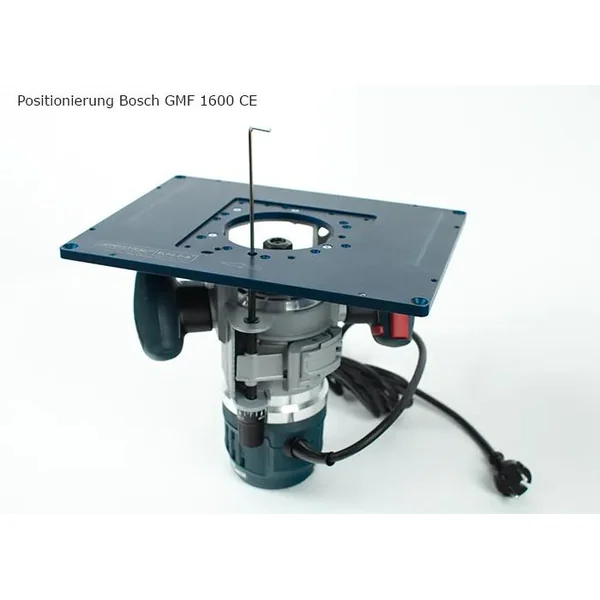

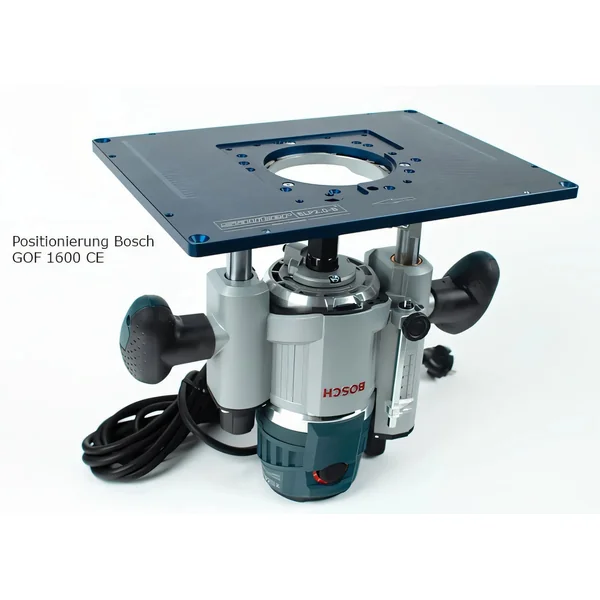

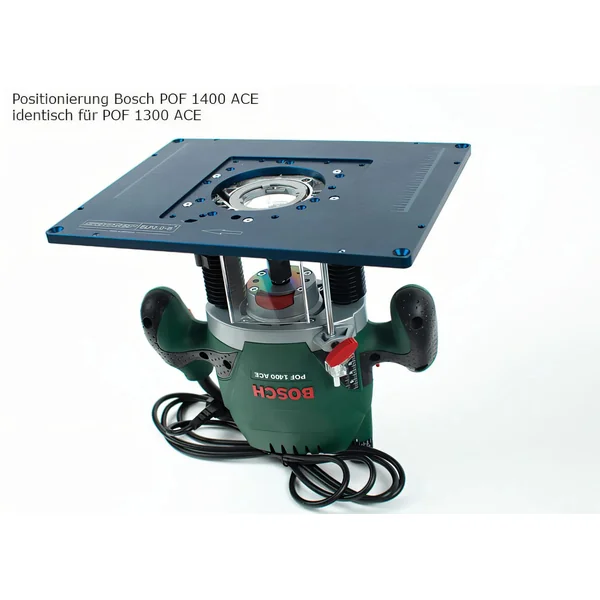

- Pilot holes fit Bosch GOF 1250 CE/LCE, GOF 1600 CE (GKF 1600), GMF 1600 CE, POF 1300 ACE and POF 1400 ACE*. Note: POF1400ACE models manufactured from approx. 6/2020 onwards have only 3 mounting holes (instead of 5).
- Scale for exact positioning of the rip fence.
- Fixing holes for mounting on the router table pre-drilled
- Levelling screws for exact adjustment router table
- Inlet for reducing plates slightly chamfered for a perfect transition
Technical data
- Dimensions
306 x 229 x 9 mm.
- Corner radius
6 mm
- Ø cutter openings
32 and 68 mm (further diameters up to 98 mm separately extendable).
