Ruwi Safety system for Felder X-Roll Panel Saws
Set 1 Standard

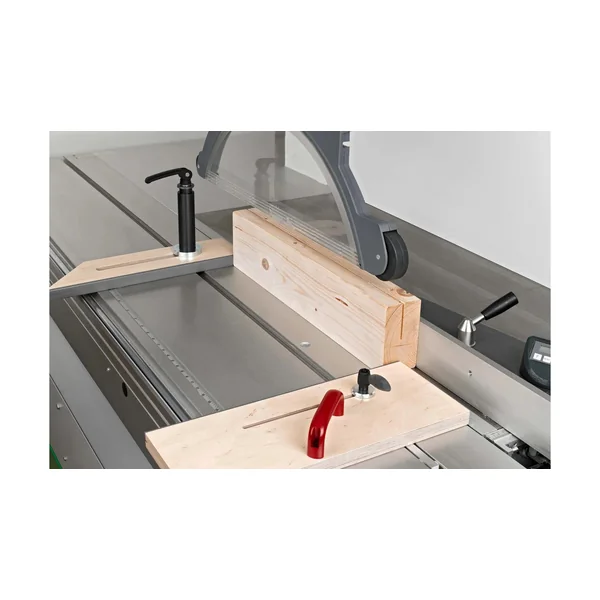

The Ruwi clamping and sawing system is an effective occupational safety device which can be mounted and adjusted on standard sliding table saws without tools in no time at all. It offers a high degree of safety when cutting inclined, short, narrow and wedge-shaped workpieces of different sizes. The clamping arm length and the slot nut on the swivel clamp are designed for Felder X-Roll machines. Various auxiliary stops can be placed or fixed quickly, safely and easily to suit the workpieces. An arrangement panel for wall mounting ensures that the individual components of the work protection device are always in place and quickly accessible. The standard version Set 1 consists of a feed fence with handle and an „auxiliary fence angled“. Both can be pushed without tools and are variably clampable and adjustable. In addition, this set also includes a swivel clamp. This is a height-adjustable, 360° swivelling quick clamping system for workpiece clamping.
Technical data
- Max. clamping height
135 mm
- Length swivel arm
130 mm
- Dimension wall panel
620 x 420 mm
- Wall panel material
sheet steel, powder-coated
- Material stops
multiplex varnished with rubber edge
- Weight
11 kg
- Compatible with
Format4 kappa 30 / Format4 kappa 40 / Format4 kappa 400 / Hammer K500 / All FELDER sliding carriages from year of manufacture 2003 onwards
Technical data
- Max. clamping height
135 mm
- Length swivel arm
130 mm
- Dimension wall panel
620 x 420 mm
- Wall panel material
sheet steel, powder-coated
- Material stops
multiplex varnished with rubber edge
- Weight
11 kg
- Compatible with
Format4 kappa 30 / Format4 kappa 40 / Format4 kappa 400 / Hammer K500 / All FELDER sliding carriages from year of manufacture 2003 onwards
