Beschreibung
Freud Rabbeting Bit D: 34,92mm R:12,7mm

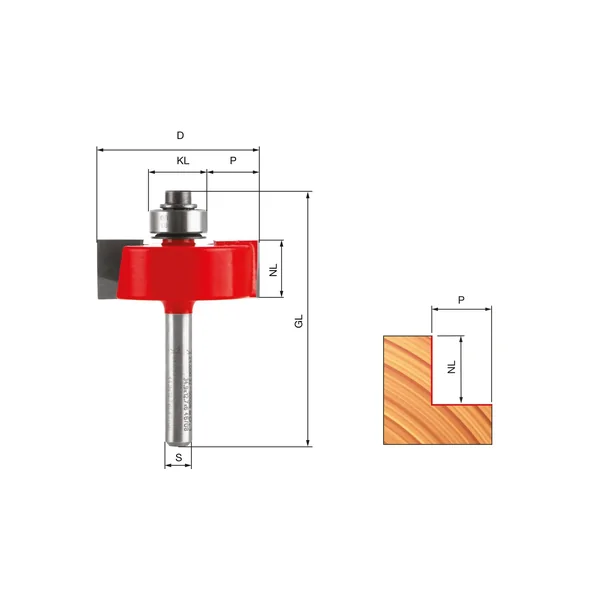

Rabbeting bit / bearing, D34.92, H54.7, h12.7, A8
Technical data
- Diameter (D mm)
34,92
- Cutting Length (h mm)
12,7
- Overall Length (H mm)
54,7
- Shank (A mm)
8
- Bearing (C mm)
12.7
- Cut (P mm)
11.1
- Teeth
2
- Angle (°)
–
- Max RPM 1/min
16000
Features & benefits
Use to make strong lap joints, cut recesses to let in the back panels of cabinets or create an interesting detail on built-up moulding.
Hand-held routers and table routers.
Softwood, hardwood, plywood and wood based panels.
A specially formulated, highly compact Titanium Cobalt Carbide, engineered and manufactured by Freud.
It provides a sharper edge and a flawless finish with a dramatically longer cutting life.
A non-stick coating formulation that withstands the toughest applications.
It provides thermal insulation, protects from corrosion and eliminates resin build-up, reducing downtime for cleaning.
Technical data
- Diameter (D mm)
34,92
- Cutting Length (h mm)
12,7
- Overall Length (H mm)
54,7
- Shank (A mm)
8
- Bearing (C mm)
12.7
- Cut (P mm)
11.1
- Teeth
2
- Angle (°)
–
- Max RPM 1/min
16000
