Lamello Bisco P-10, 80 pieces
Aligning element, suitable for the P-System groove

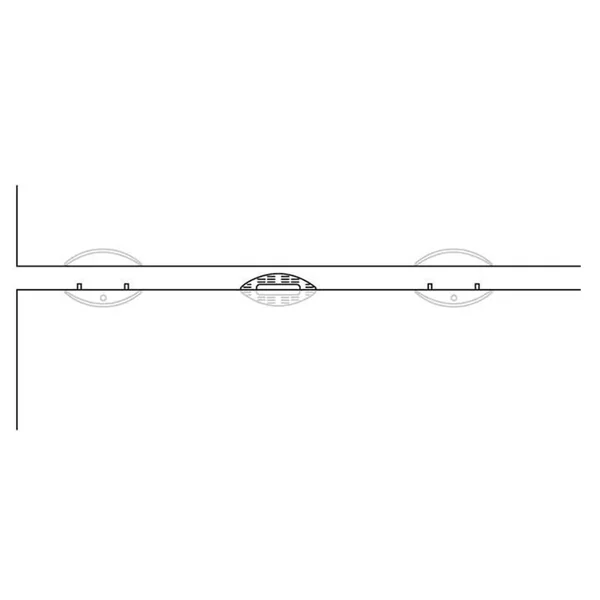

Bisco P is a plastic biscuit which fits into the 7 mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14; and Bisco P-10 with the same connectors in size P-10.
Technical data
- Installation tolerance longitudinal – ± 2
- Installation tolerance radial – ± 0
- Minimum material thickness for surface cuts – 9
- Minimum material thickness for edge cuts – 12
- Minimum material thickness for centre panel – 17
- Minimum material thickness for angle bisector – 15
- Minimum workpiece width – 65
- Self-clamping – No
- Invisible – Yes
- Detachable – No
Features & benefits
- Flush alignment
- Alternating application
- Versatile
- Lateral tolerance
- Shallow depth
