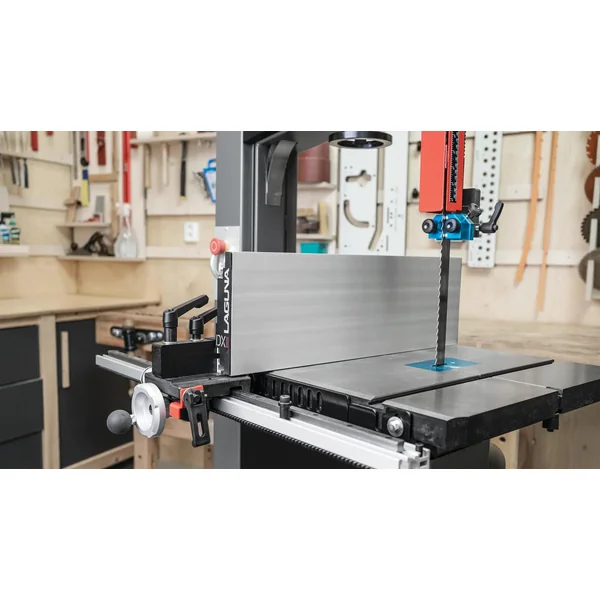

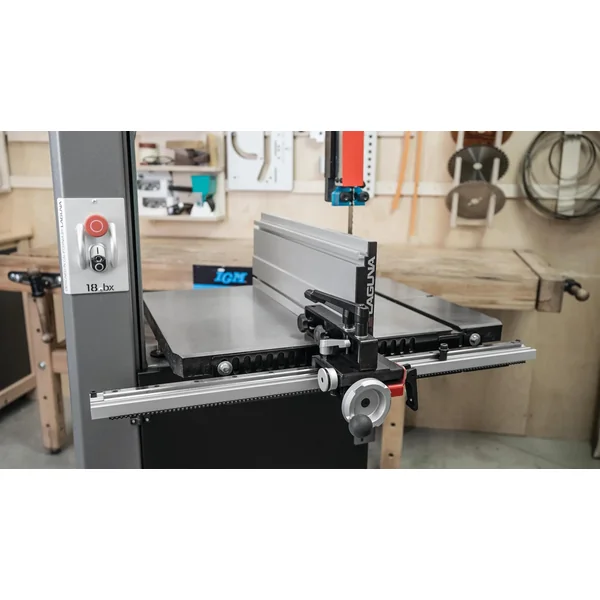

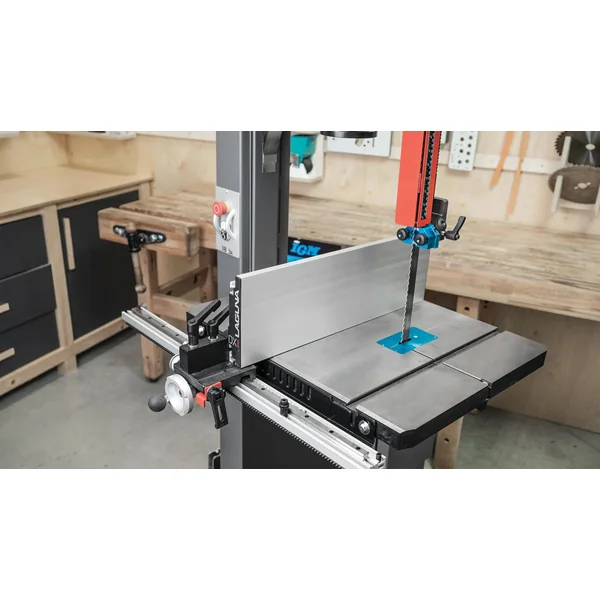

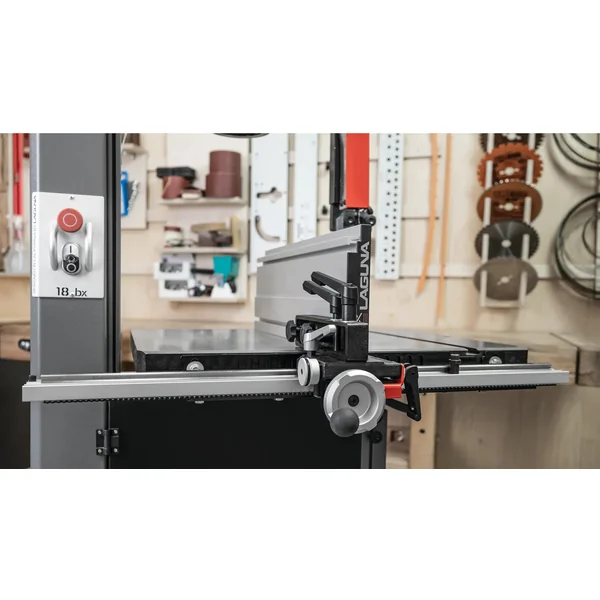

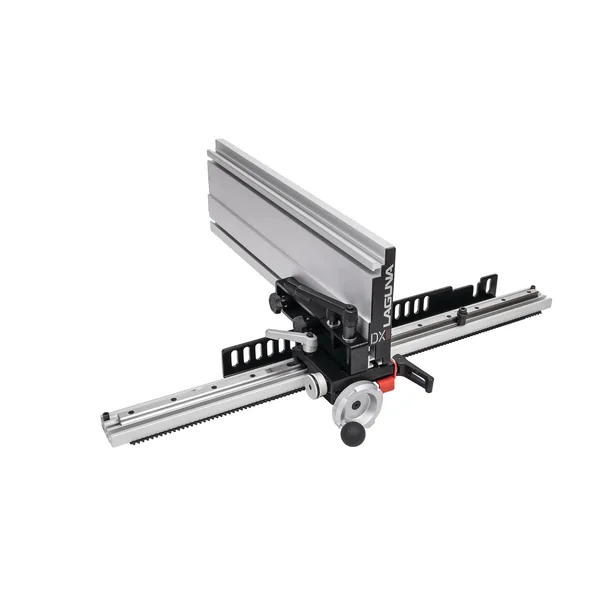

LAGUNA DX3 DriftMaster fence for band saws
Universal fence for band saws.
Technical data
- Compatible with band saws with a running wheel Ø of 355 – 457 mm
- Profile length
578 mm
- Profile height (vertical / horizontal position)
184 / 17 mm
- Maximum cutting width of the band saw blade
435 mm
- Displacement per revolution
approx. 7 mm
- Angle of the guide ruler
10° left, 10° right
- Weight
12.3 kg
Features & benefits
- The LAGUNA DriftMaster is suitable for various bandsaws with a running wheel diameter of 355 – 457 mm and has a micro and quick feed.
- The aluminium profile can be tilted as well as inclined sideways by up to 10°.

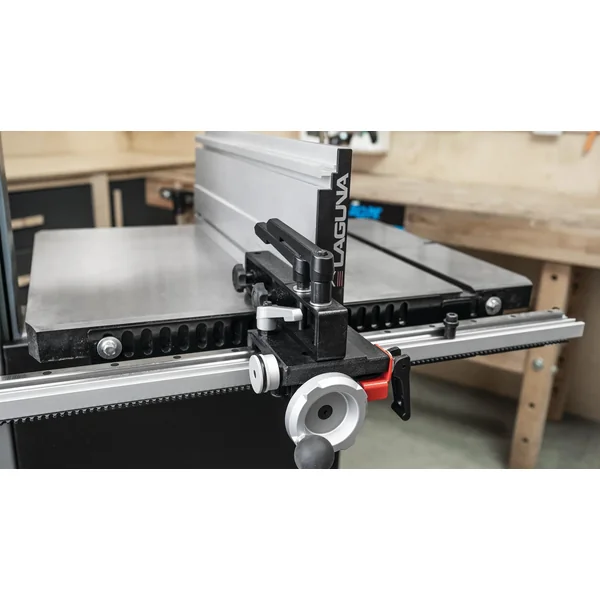

- The ruler is moved via a linear gear drive and is supplemented by an adjustable scale and a stop.
- Tool-free angle adjustment and adjustable scale with stop.
- The solid aluminium profile can be used both vertically and horizontally.
- Precise and repeatable cuts.
- Directly compatible with Laguna band saws.
- The scale on both sides in mm and inches makes it easy to set the profile distance from the saw blade up to 435 mm.
Technical data
- Compatible with band saws with a running wheel Ø of 355 – 457 mm
- Profile length
578 mm
- Profile height (vertical / horizontal position)
184 / 17 mm
- Maximum cutting width of the band saw blade
435 mm
- Displacement per revolution
approx. 7 mm
- Angle of the guide ruler
10° left, 10° right
- Weight
12.3 kg
