Beschreibung
Product Description
Product description
Product dimensions
73 x 23 x 7 mm (LxWxD)

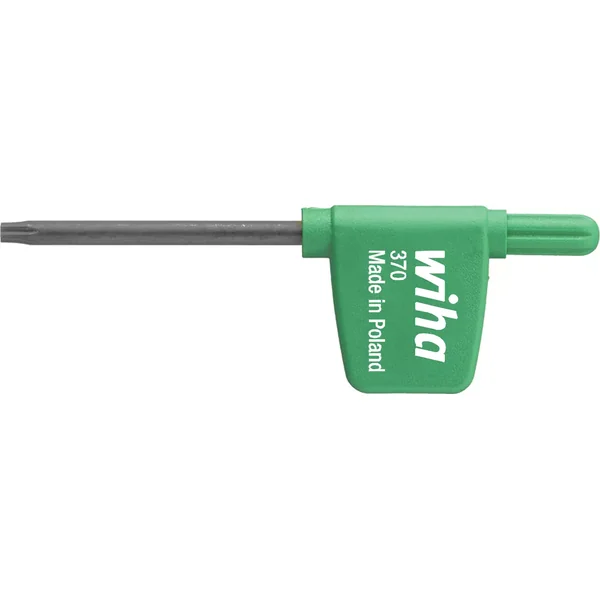

Handle
Wiha flag handle.
Application
For high torque transfer with small screws, especially when replacing indexable inserts on milling heads.
Blade
Chrome-vanadium steel, through-hardened, bronzed.
Technical Details
| Order number | EAN | 03724 | 4010995037246 | T5 | 35 mm | 2 mm | 62 mm | 15 mm | 2 |
|---|---|---|---|---|---|---|---|---|
| 03725 | 4010995037253 | T6 | 35 mm | 2 mm | 62 mm | 15 mm | 2 | |
| 03726 | 4010995037260 | T7 | 35 mm | 2.5 mm | 67 mm | 19 mm | 3 | |
| 03727 | 4010995037277 | T8 | 40 mm | 2.5 mm | 72 mm | 19 mm | 4 | |
| 03728 | 4010995037284 | T9 | 40 mm | 3 mm | 74 mm | 24 mm | 6 | |
| 03729 | 4010995037291 | T10 | 40 mm | 3 mm | 74 mm | 24 mm | ||
| 03730 | 4010995037307 | T15 | 45 mm | 3.5 mm | 80 mm | 28 mm | 8 | |
| 03731 | 4010995037314 | T20 | 45 mm | 4 mm | 80 mm | 28 mm | 9 |
TORX® 1
Length T-handle blade (mm)
Round blade diameter (mm)
Overall length (mm)
Handle width (T-handle) (mm)
Weight PU in grams
Series 370
Size specifications are always given in mm
