Product Description
Product description

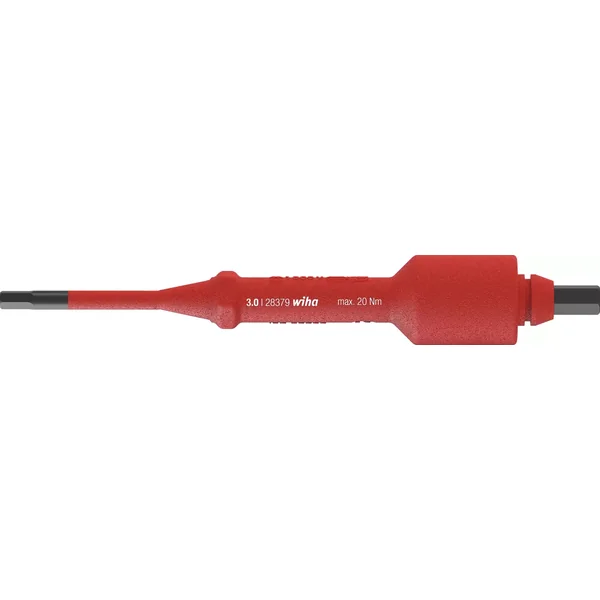

Safety is the top priority when users are working on live parts. In combination with the insulated Wiha torque screwdriver T-handle TorqueVario®-S electric, the interchangeable blade electric enables controlled fastening and loosening of screws. The insulated interchangeable blade is subject to individual piece testing as per the international IEC 60900 standard, thus ensuring safe work on live parts up to 1,000 V AC.
Product dimensions
136 x 20 x 20 mm (LxWxD)
Standards
Manufactured acc. to IEC 60900.
Note
Only compatible with Wiha torque screwdriver with T-handle TorqueVario®-S T electric
Application
In combination with the Wiha torque screwdriver with T-handle TorqueVario®-S T electric, it is ideal for controlled fastening of predefined torques for tasks such as industrial assembly work.
Technical Details
| Order number | EAN | 38918 | 4010995389185 | 3.0 mm | 136 mm | 35 mm | 5.5 Nm | 34 |
|---|---|---|---|---|---|---|---|
| 38919 | 4010995389192 | 4.0 mm | 136 mm | 35 mm | 15.0 Nm | 36 | |
| 38920 | 4010995389208 | 5.0 mm | 136 mm | 35 mm | 20.0 Nm | 37 | |
| 38921 | 4010995389215 | 6.0 mm | 136 mm | 35 mm | 20.0 Nm | 38 |
Internal hexagon (mm)
Overall length (mm)
Visible blade length (mm)
Torque value max (Nm)
Weight PU in grams
Series 283793
Size specifications are always given in mm
