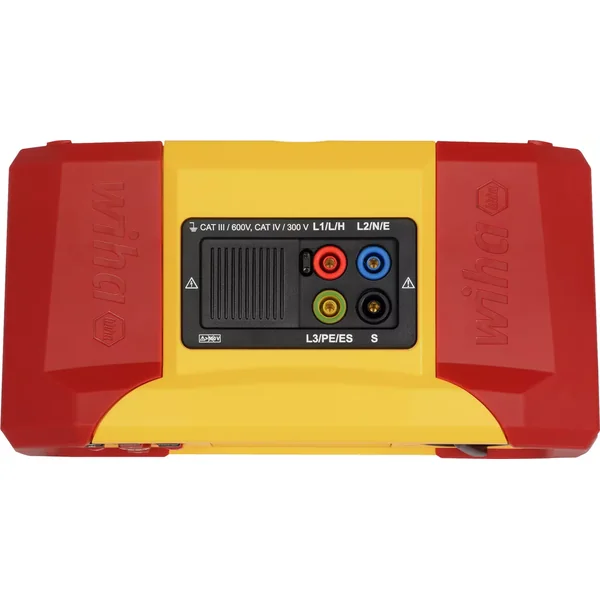

Revolutionarily simple – The installation tester performs the tests, Sparkify takes care of the rest
Click, click, tap – Complete and faster installation testing due to time savings when documenting with Sparkify

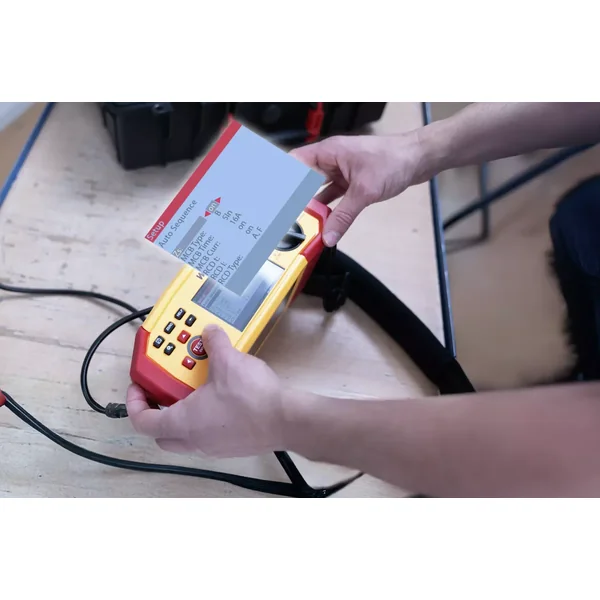

Expedites the testing process through a configurable automatic testing sequence of all relevant measurements at a measuring point
Clearly distinguished measuring values thanks to good/bad categorization

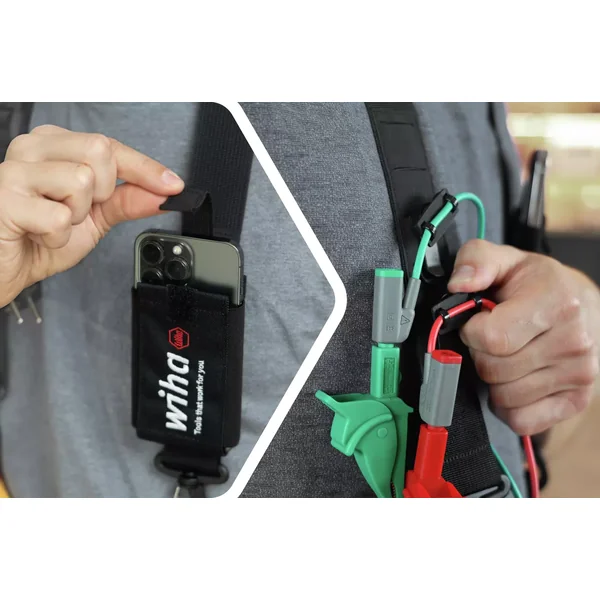

Comfortable neck strap with holder for smartphones and accessories for more work convenience

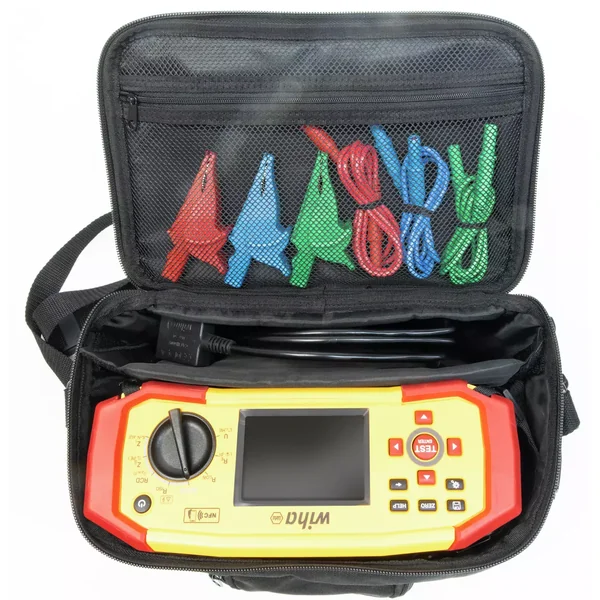

Compact transport bag for mobile application
Product Description
Product description

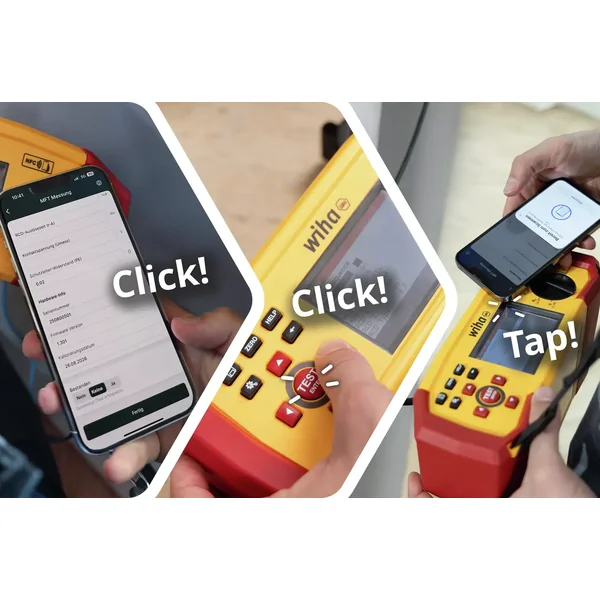

Inconvenient preparation and follow up tasks, paperwork and multiple storage locations? All of these are now things of the past. With the Sparkify app, the Wiha installation tester revolutionizes installation testing: click, click, tap.
Click – Preparation takes place quickly and easily via an app. Preconfigured input boxes are used to carry out the documentation directly on the smartphone during the testing. Alternatively, documentation that was prepared at the office or imported from a planning tool can be selected with a „click.“
Click – The measuring process itself is controlled reliably and intuitively via the rotary knob on the device and can be further expedited with the configurable auto-test function.

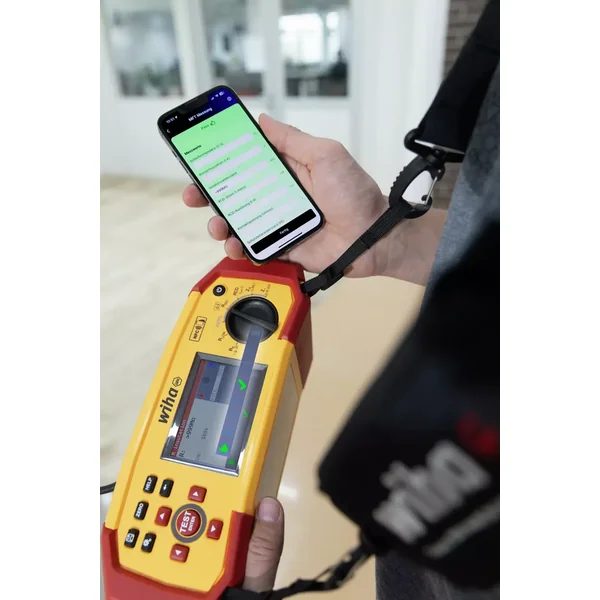

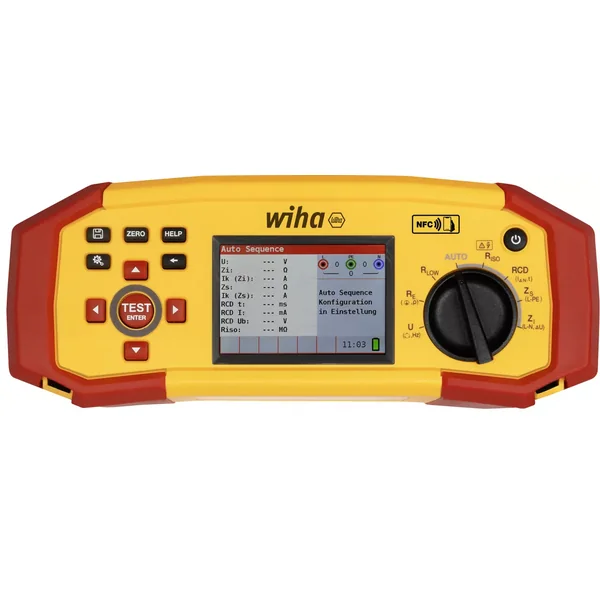

Tap – With a single „tap,“ the measurement results are transferred wirelessly via NFC to the Sparkify app and directly linked to the electric circuit. This makes the documentation available not only fully but also immediately in digital form – easier, faster, and according to standards.
In addition, the automatic test sequence collects all relevant standard measurements for a measuring point in a single go. If required, the test sequence can be adjusted to your individual specifications. Each work step is supported by the clear good/bad categorization, which ensures immediate orientation.
The installation tester from Wiha can be used for a wide range of variables: from voltage, frequency, rotary field, network and loop impedance, via release time and release currents of RCDs, up to insulation, earthing and protective conductor resistance.

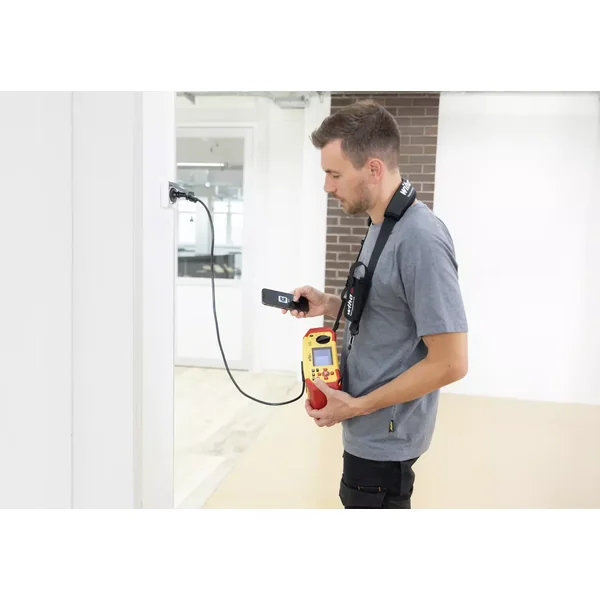

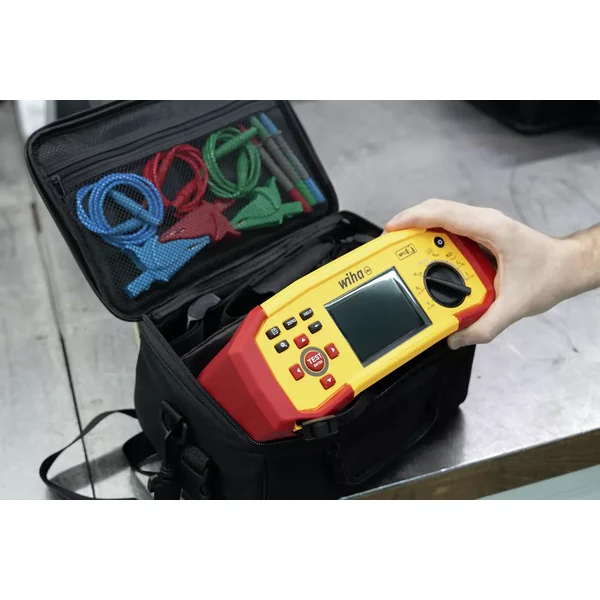

During mobile application at the construction site, the compact transport bag ensures that the device and accessories are stored within easy reach.
Product dimensions
270x180x150 mm (LxWxD)
Application
For the quick and secure testing of stationary systems according to DIN VDE 0100-600 and DIN VDE 0105-100 – optimally suited for the basic equipment of professional electricians.
Available Downloads
- 1013161_quickstartguide_MFT_47216-47217-47218-47219_online.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_de-en_online.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_CS.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_DA.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_ES.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_FI.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_FR.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_HU.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_IT.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_NL.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_NO.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_PL.pdf
- BA_47216-47217-47218-47219_mft-one_210x150mm_SV.pdf
Set constituent

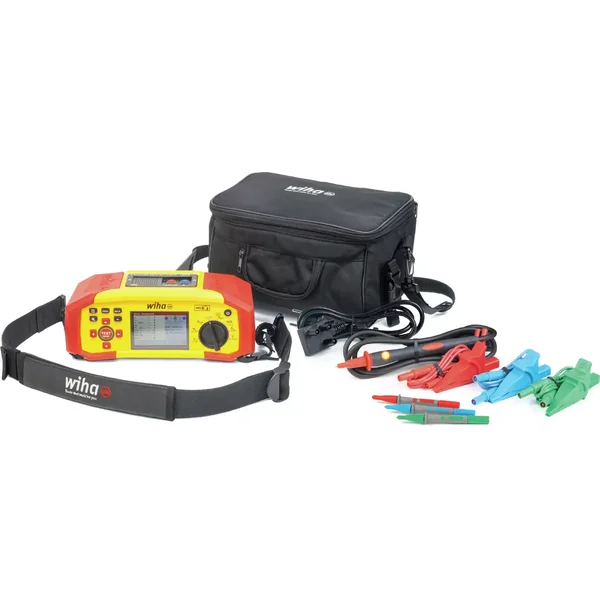

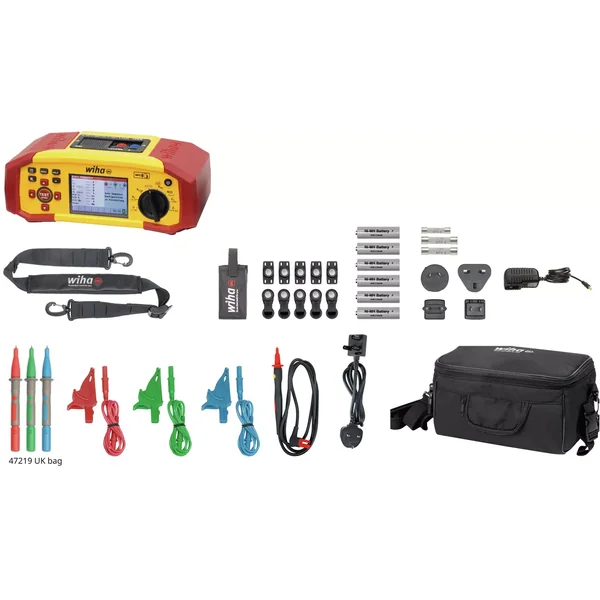

Content:1x Measuring device MFT one1x 9-pcs cable accessory set for installation testers (47225)1x Charger for installation tester (47228)1x UK measuring adapter for installation testers (47227)1x Test probe with test button incl. crocodile clip for installation and appliance testers (47229)1x Magnetic holder set 5-piece for installation testers (47240)1x Spare fuse set for installation testers (47233)1x Shoulder / carrying strap1x Mobile phone pouch1x MFT bag
Technical Details
| Order number | 47219 |
|---|---|
| EAN | 4010995472191 |
| 6 h | |
| 2 | |
| IP42 | |
| 480 x 320 TFT LCD | |
| 0 – 40°C | |
| -10 – 70 | |
| Power supply | 9 V DC (6 x 1,5 V Ni-MH batteries, AA) |
| Power adapter | 12 V DC / 1000 mA |
| Operation | ~ 15 h (depending on usage) |
| Overvoltage category | CAT III / 600 V; CAT IV / 300 V |
| Device weight without batteries | 1300 g |
| COM port | USB |
| Relative humidity | Max. 95 %, non-condensing |
| Protection classification | Double insulation |
| Insulation resistance measurement (Riso) measuring range (MΩ) rated voltage 50 V DC | 0,1 – 80,0 |
| Insulation resistance measurement (Riso) resolution (MΩ) | (200,0 – 999) 1 |
| Insulation resistance measurement (Riso) accuracy | ± (2% + 3 Digit) |
| Insulation resistance measurement (Riso) measuring range (MΩ) rated voltages 100 V DC and 250 V DC | 0,1 – 199,9 |
| Insulation resistance measurement (Riso) measuring range (MΩ) rated voltages 500 V DC and 1000 V DC | 0,1 – 199,9 |
| Insulation resistance measurement (Riso) measuring range (MΩ) | 200 – 999 |
| Insulation resistance measurement (Riso) measuring range (V) | 0 – 1200 |
| Insulation resistance measurement (Riso) resolution (V) | 1 |
| Insulation resistance measurement (Riso) test voltage | 50 V DC, 100 V DC, 250 V DC, 500 V DC, 1000 V DC |
| Insulation resistance measurement (Riso) open-circuit voltage | 0 % – 20 % of the rated voltage |
| Insulation resistance measurement (Riso) current measurement | Min. 1 mA (Rn = Un 1kΩ/V) |
| Insulation resistance measurement (Riso) short-circuit current | Max. 15 mA |
| Insulation resistance measurement (Riso) number of tests | Max. 1000 (with 2300-mAh-batteries) |
| Low resistance measurement (Rlow) measuring range (MΩ) | 20 – 1999 |
| Low resistance measurement (Rlow) resolution (MΩ) | (0,10 – 19,99) 0,01 / (2,00 – 80,00) 0,01 |
| Low resistance measurement (Rlow) accuracy | ± (5%) |
| Low resistance measurement (Rlow) rated voltage | 5 V DC |
| Low resistance measurement (Rlow) test current | Min. 200 mA with 2 Ω load resistance |
| Low resistance measurement (Rlow) test lead compensation | Max. 5 Ω |
| Low resistance measurement (Rlow) number of tests | Max. 1400 (with 2300-mAh-batteries) |
| Continuity test (low current measurement) measuring range (MΩ) | 0,1 – 1999 |
| Continuity test (low current measurement) resolution (MΩ) | (0,10 – 99,99) 0,1 / (100 – 1999) 1 |
| Continuity test (low current measurement) accuracy | ± (5% + 3 Digit) |
| Continuity test (low current measurement) open-circuit voltage | 5 V DC |
| Continuity test (low current measurement) short-circuit current | Max. 7 mA |
| Continuity test (low current measurement) test lead compensation | Max. 5 Ω |
| FI/RCD test rated residual current | 6 mA, 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000mA |
| FI/RCD test accuracy | -0,1 IΔ / +0; IΔ = ½ IΔN |
| FI/RCD test type of test current | Sine (AC), DC (B), pulsed (A) |
| FI/RCD test RCD type | General (G, non-delayed), selective (S, time-delayed), EVSE |
| FI/RCD test input polarity of the test current | 0°, 180° |
| FI/RCD test voltage range | 93 – 134 V; 185 – 266 V, 45 – 65 Hz |
| Touch voltage measuring range (V) | 10,0 – 99,9 |
| Touch voltage resolution (V) | 0,1 |
| Touch voltage accuracy | (-0% / +10% + 5 Digit) |
| Touch voltage test current | Max. 0,5 IΔN |
| Touch voltage limit value of touch voltage | 25 V, 50 V |
| Tripping time general (non-delayed) RCDs | 5 x IΔN: 50 ms < 40 ms |
| Tripping time selective (time-delayed) RCDs | 5 x IΔN: 50 ms < 150 ms |
| Tripping time RCD 6 mA DC | 10 x IΔN DC: < 300 ms |
| Tripping time RCD 30 mA DC | 167 x IΔN DC: < 80 ms |
| Tripping time measuring range (ms) | 0,0 – 500,0 |
| Tripping time resolution (ms) | 0,1 |
| Tripping time accuracy | ± 3 ms |
| Tripping time test current | ½ × IΔN, IΔN, 2 × IΔN, 5 × IΔN |
| Tripping time limit value touch voltage | 25 V, 50 V |
| Tripping current measuring range (Δ) | 0,2 × IΔN … 2,2 × IΔN (Typ A, IΔN = 10 mA) |
| Tripping current resolution (Δ) | 0,05 × IΔN |
| Tripping current accuracy | ± 3 ms |
| Tripping current measuring range (ms) | 0,0 – 500,0 |
| Tripping current resolution (ms) | 1 |
| Tripping current measuring range (V) | 10,0 – 99,9 |
| Tripping current resolution (V) | 0,1 |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) measuring range (Ω) | 0,2 – 9999 |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) resolution (Ω) | (20 – 99,9) 0,1 |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) accuracy | Observe the accuracy of the fault loop impedance measurement |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) measuring range (A) | 20,00 – 99,9 |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) resolution (A) | 1 |
| Fault loop impedance and prospective short-circuit current Zs (L-PE, mode without RCD), Ik (with RCD tripping) test current at 230 V | 3.4 V, 50 Hz sine wave ≤ (10 ms ≤ t LAST ≤ 15 ms) |
| Fault loop impedance rated voltage range | 93 – 134 V; 185 – 266 V, 45 – 65 Hz |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) measuring range (Ω) | 0,4 – 19,99 |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) resolution (Ω) | (100 – 9999) 1 |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) accuracy | ± (5% + 10 Digit) |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) measuring range (A) | 1,00 k – 9,99 k |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) resolution (A) | 100 |
| Zs (L-PE, mode: standard RCD & alternative RCD), Ik (without RCD tripping) rated voltage range | 93 – 134 V; 185 – 266 V, 45 – 65 Hz |
| Fault loop impedance. Fault loop impedance RCD type A, 30 mA, trip lock (no trip) and different RCD type and trip lock (no trip) rated input voltage Un | 115 V 230 V |
| Fault loop impedance. Fault loop impedance RCD type A, 30 mA, trip lock (no trip) and different RCD type and trip lock (no trip) voltage range | 185 V ≤ U L-PE ≤ 266 V |
| Mains impedance and prospective short-circuit current rated input voltage Un | 230 V |
| Mains impedance and prospective short-circuit current voltage range | 321 V ≤ UL-PE ≤ 485 V |
| Mains impedance and prospective short-circuit current measuring range (Ω) | 0,2 – 9999 |
| Mains impedance and prospective short-circuit current resolution (Ω) | (0,20 – 19,99) 0,01 |
| Mains impedance and prospective short-circuit current accuracy | ± (5% + 5 Digit) |
| Mains impedance and prospective short-circuit current measuring range (A) | 0,00 – 19,99 |
| Mains impedance and prospective short-circuit current resolution (A) | 1 |
| Mains impedance and prospective short-circuit current test current at 230 V | 3.4 V, 50 Hz sine wave (10 ms ≤ t LAST ≤ 15 ms) |
| Mains impedance and prospective short-circuit current rated voltage range | 93 – 134 V; 185 – 266 V; 321 – 485 V, (45 – 65 Hz) |
| Mains impedance and prospective short-circuit current measuring range (%) | 0,0 – 9,9 |
| Mains impedance and prospective short-circuit current resolution (%) | 0,1 |
| Voltage and frequency measurement measuring range (V) | 0 – 550 |
| Voltage and frequency measurement resolution (V) | 1 |
| Voltage and frequency measurement accuracy | ± (2% + 2 Digit) |
| Voltage and frequency measurement clockwise phase sequence | 1-2-3 |
| Voltage and frequency measurement counterclockwise phase sequence | 3-2-1 |
| Voltage and frequency measurement frequency range | 0 Hz, 45 – 400 Hz |
| Voltage and frequency measurement measuring range (Hz) | 10 – 499 |
| Voltage and frequency measurement resolution (Hz) | 0,1 |
| Voltage and frequency measurement rated voltage range | 10 – 550 V |
| Phase sequence, clockwise rotating field | 1-2-3 |
| Phase sequence, counterclockwise rotating field | 3-2-1 |
| Phase sequence rated voltage range | 93 – 550 V AC |
| Phase sequence frequency range | 45 – 400 Hz |
| Earth resistance type of test voltage | Sine wave |
| Earth resistance resolution (Ω) | (20 – 199,9) 0,1 |
| Earth resistance accuracy | ± (5% + 5 Digit) |
| Earth resistance short-circuit current | < 30 mA |
| Earth resistance open-circuit voltage | < 30 V AC |
| Earth resistance, max. probe resistance Rs | 100 RE or 50 kΩ (priority to the lower value) |
| Earth resistance max. resistance Rh auxiliary earth electrode | 100 RE or 50 kΩ (priority to the lower value) |
| Earth resistance measuring range (Ω) | 1,0 – 9999 |
| Earth resistance test voltage frequency | 126,9 Hz |
| Earth resistance additional error at 3 V voltage noise (50 Hz) | ± (5% + 10 Digit) |
| Earth resistance additional error of sensor resistance at Rhmax or Rsmax | ± (10% + 10 Digit) |
| Specific earth resistance (Ro) resolution (Ω) | 0,1 kΩm |
| Specific earth resistance (Ro) accuracy | ± 20 % (Re > 20 kΩ) |
| Specific earth resistance (Ro) measuring range (Ω) | 6,0 – 99,9 Ωm |
| 135 mm | |
| 107 mm | |
| Length (mm) | 250 mm |
| 4240 | |
Loading time (h)
Contamination level
Protection class IP
Display
Operating temperature min – max (°C)
Storage temperature min – max (°C)
Width (mm)
Height (mm)
Weight PU in grams
Series 25571
Size specifications are always given in mm
