Beschreibung
Flat dowel cutter set HW

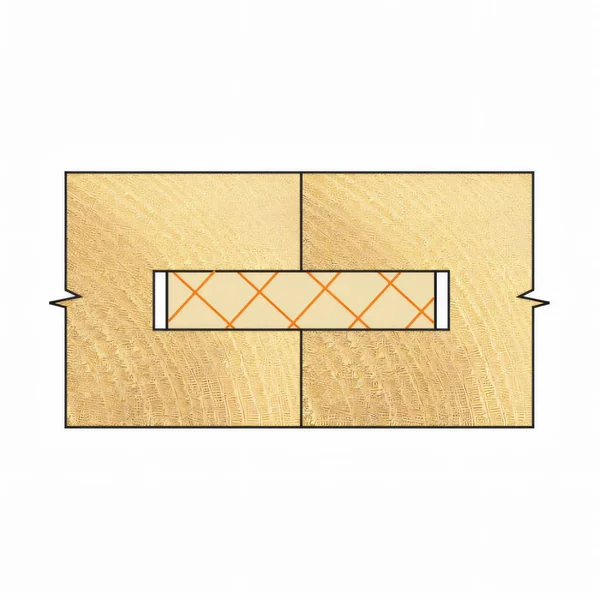

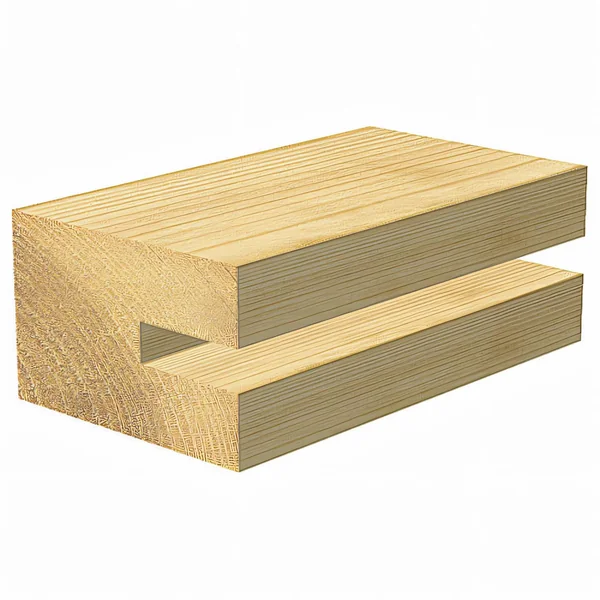

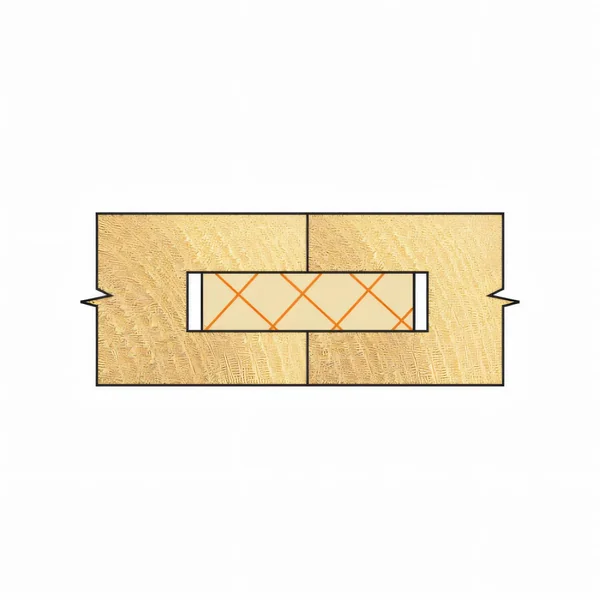

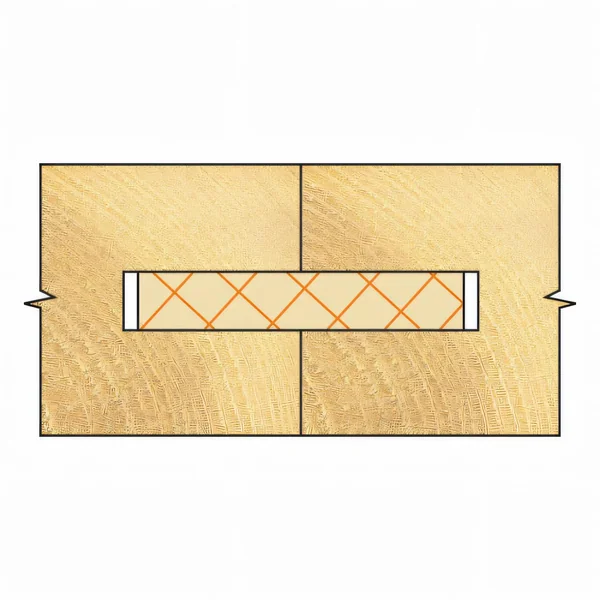

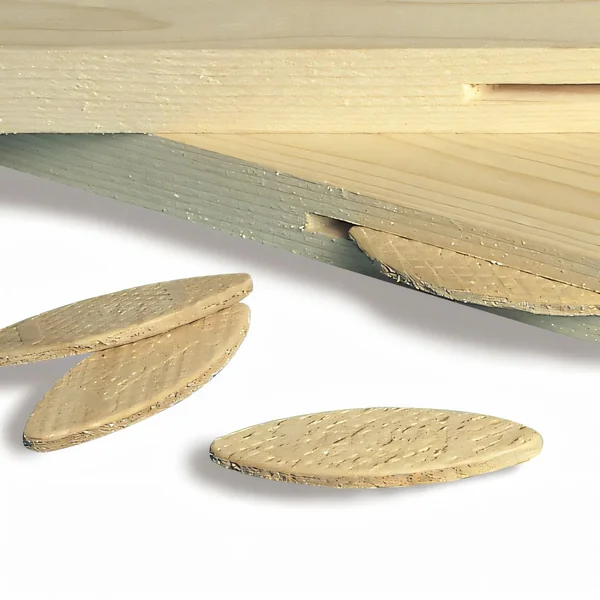

This 2-leaf HM-tipped Disk Groove Cutteris ideally suited for grooving flat dowel plates. Includes three different ball bearings to use all three sizes of flat dowel plates can. However, the depth of cut should be slightly greater than the plate itself to make it easier to fit together.

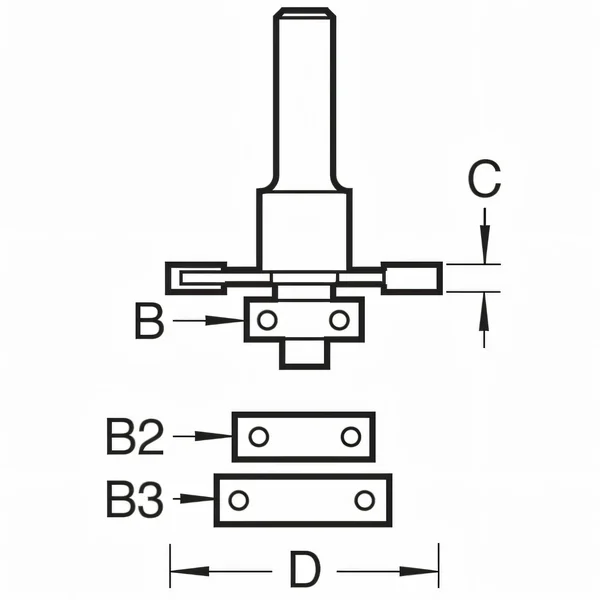

Technical data
- D
37,2 mm
- NL (C)
4 mm
- Ball bearing (B)
12,7 mm -> slot depth: 9,05 mm
- Ball bearing (B2)
16 mm -> slot depth: 10,6 mm
- Ball bearing (B3)
19 mm -> slot depth: 12,25 mm
- S
12 mm
- Z
2
Technical data
- D
37,2 mm
- NL (C)
4 mm
- Ball bearing (B)
12,7 mm -> slot depth: 9,05 mm
- Ball bearing (B2)
16 mm -> slot depth: 10,6 mm
- Ball bearing (B3)
19 mm -> slot depth: 12,25 mm
- S
12 mm
- Z
2
